1. Describe
PIC16F785/HV785 has multiple clocks Source and select function to allow it to be used A wide range of applications, while maximizing performance and minimizing power consumption. The clock source can be configured as an external oscillator, quartz crystal resonator, ceramic resonator and Resistor-capacitor (RC) circuit. In addition, the system clock source can be configured as two Internal oscillator, selectable speed Through software. Other clock functions include:
- Optional external system clock source Or through the software.
- Two-speed clock startup mode to minimize the delay between external oscillator startup And code execution.
- The Fail Safe Clock Monitor (FSCM) is designed to Detect external clock source (LP, XT, HS, EC or RC mode) and switch to Internal oscillator.
PIC16F785/HV785 can be configured as one of the following Eight clock modes.
1. EC-External clock with I/O on RA4.
2. LP – 32.768 kHz watch crystal or ceramic Resonator oscillator mode.
3. XT-medium gain crystal or ceramic Resonator oscillator mode.
4. HS-high gain crystal or ceramic resonator model.
5. RC-External resistance capacitance (RC) and FOSC/4 output on RA4
6. RCIO-External resistor-capacitor with I/O RA4.
7. INTOSC – Internal oscillator with FOSC/4 output I/O on RA4 and RA5.
8. INTOSCIO – Internal oscillator with I/O on RA4 And RA5.
The clock source mode is determined by The FOSC<2:0> bits in the Configuration Word (see Section 15.0 "Special Features of the CPU"). once PIC16F785/HV785 has been programmed, clock The source mode is configured and cannot be software.
2. Functions
1. High-speed comparator module with
- Two independent analog comparators
- Programmable on-chip reference voltage (CVREF) module (percentage of VDD)
- 1.2V band gap voltage reference
- External comparator input and output Barrier-free
- <40 ns propagation delay
- 2 mv offset, typical
2. The operational amplifier module has 2 independent Operational Amplifier:
- 3 MHz GBWP, typical
- All I/O pins can be accessed from the outside
3. Two-phase asynchronous feedback PWM Module
- Programmable complementary output Dead zone delay
- Infinite resolution analog duty cycle
- Multi-phase PWM synchronous output/input
- FOSC/2 maximum PWM frequency
4. A/D converter
- 10-bit resolution and 14 channels (2 internal)
5. 17 I/O pins and 1 input-only pin
- High current source/sink for direct LED drive
- Pin interrupt change
- Individually programmable weak pull-up
6. Timer0: 8-bit 8-bit timer/counter Programmable prescaler
7. Enhanced timer 1
- 16-bit timer/counter with prescaler
- External department input mode
- Option to use OSC1 and OSC2 in LP mode As Timer1 oscillator, if it is in INTOSC mode Selected
8. Timer2: 8-bit timer/counter with 8-bit period Register, prescaler and postscaler
9. Capture, compare, PWM module
- 16-bit capture with a maximum resolution of 12.5 ns
- Comparison, maximum resolution 200 ns
- 10-bit PWM with 1 output channel, maximum Frequency 20 kHz
10. In-Circuit Serial Programming TM (ICSPTM) through two Pin
11. Shunt regulator (PIC16HV785 only)
- 5 volt adjustment
- 4 mA to 50 mA shunt range
3. Special microcontroller features
1. Precision internal oscillator:
- Factory calibration is ±1%
- Software selectable frequency range 8 MHz to 32 kHz
- Software adjustable
- Two-speed start mode
- Crystal failure detection for critical applications
- Clock mode switching during operation Power saving
2. Energy-saving sleep mode
3. Wide operating voltage range (2.0V-5.5V)
4. Industrial and extended temperature range
5. Power-on reset (POR)
6. Power-on Timer (PWRT) and oscillator start Timer (OST)
7. Power-down reset (BOR) with software control Options
8. Enhanced low-current watchdog timer (WDT) With on-chip oscillator (software selectable Nominal 268 seconds, full prescaler) and Software enable
9. Multiplexed master clear with pull-up/input pin
10. Programmable code protection
11. High-endurance flash/EEPROM unit:
- 100,000 write flash memory endurance
- Endurance of 1,000,000 writes to EEPROM
- Flash memory/data EEPROM retention time:> 40 years
4. High-performance RISC CPU
1. There are only 35 learning instructions:
- All single-cycle instructions except for branches
2. Operating speed:
- DC-20 MHz oscillator/clock input
- DC-200 ns instruction cycle
3. Interrupt capability
4. 8-level Seep hardware stack
5. Direct, indirect and relative addressing modes
5. Low power consumption characteristics
1. stand-by current:
- 30 nA @ 2.0V, typical
2. Working current:
- 8.5 μA @ 32 kHz, 2.0V, typical
- 100 μA @ 1 MHz, 2.0V, typical
3. Watchdog timer current:
- 1 μA @ 2.0V, typical
4. Timer1 oscillator current:
- 2 μA @ 32 kHz, 2.0V, typical

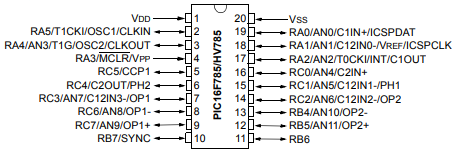

6. Pin configuration
