PIC18F86K22-I/PT

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Low power consumption characteristics:

    1. Power management mode:

        - Run: CPU is turned on, peripherals are turned on

        - Idle: CPU is off, peripherals are on

        - Sleep: CPU is off, peripherals are off

    2. Two-speed oscillator start

    3. Fail-safe clock monitor

    4. Energy-saving Peripheral Module Disable (PMD)

    5. Ultra-low power wake-up

    6. Fast wake-up, typical value 1 s

    7. Low-power WDT, typically 300 nA

    8. Ultra-low 50 nA input leakage

    9. Run mode current as low as 5.5 A, typical

  10. Idle mode current as low as 1.7 A typical

  11. Sleep mode current is as low as 20 nA, typical

  12. The RTCC current drops to a very low 700 nA,typical

2. Special microcontroller features:

    1. Operating voltage range: 1.8V to 5.5V

    2. On-chip 3.3V regulator

    3. Running speed up to 64 MHz

    4. Up to 128 KB of on-chip flash program memory

    5. 1,024 bytes of data EEPROM

    6. 4K x 8 General Purpose Register (SRAM)

    7. At least 10,000 erase/write cycles flash program memory

    8. 1,000,000 erase/write cycles data EEPROM memory, typical value

    9. Flash memory retention time: 40 years, the shortest

  10. Three internal oscillators: LF-INTRC (31 kHz), MF-INTOSC (500 kHz) and HF-INTOSC (16 MHz)

  11. Self-programming under software control

  12. Interrupt priority

  13. 8 x 8 single-cycle hardware multiplier

  14. Extended Watchdog Timer (WDT):

        - Programmable period from 4 ms to 4,194s (approximately 70 minutes)

  15. In-Circuit Serial Programming™ (ICSP™) through two pins

  16. Online debugging through two pins

  17. Programmable:

        - Inter-bank lending

        - LVD

3. Surrounding highlights:

    1. Up to ten CCP/ECCP modules:

        - Up to seven capture/compare/PWM (CCP) Module

        - Three enhanced capture/compare/PWM (ECCP) module

    2. Up to 11 8/16-bit timer/counter modules:

        - Timer0 – 8/16-bit 8-bit timer/counter Programmable prescaler

        - Timer1,3 – 16-bit timer/counter

        - Timer2,4,6,8-8-bit timer/counter

        - Timer5,7 – 16-bit timer/counter for 64k and 128k parts

        - Timer10,12 – 8-bit timer/counter for 64k and 128k parts

    3. Three analog comparators

    4. Configurable reference clock output

    5. Hardware real-time clock and calendar (RTCC) Module with clock, calendar and alarm functions

    6. Charging time measurement unit (CTMU):

        - mTouch™ capacitance measurement Sensing solution

        - Time measurement, typical value is 1 ns Resolution

        - Integrated temperature sensor

    7. High current sink/source current 25 mA/25 mA (PORTB and PORTC)

    8. Up to four external interrupts

    9. Two master synchronous serial ports (MSSP) Module:

        - 3/4 wire SPI (supports all four SPI modes)

        - I2C™ master-slave mode

  10. Two enhanced addressable USART modules:

        - LIN/J2602 support

        - Automatic baud rate detection (ABD)

  11. 12-bit A/D converter with up to 24 channels:

        - Automatic acquisition and sleep operation

        - Differential input operation mode

  12. Integrated reference voltage

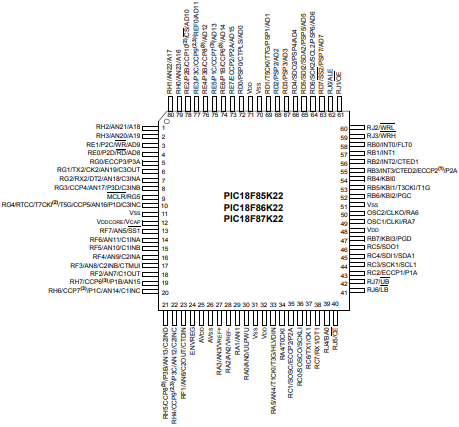

4. Pin configuration
