1. DESCRIPTION
NPN switching transistor in a SOT323 plastic package. PNP complement: PMST3906.
2. FEATURES
1. Collector current capability IC = 200 mA
2. Collector-emitter voltage VCEO = 40 V.

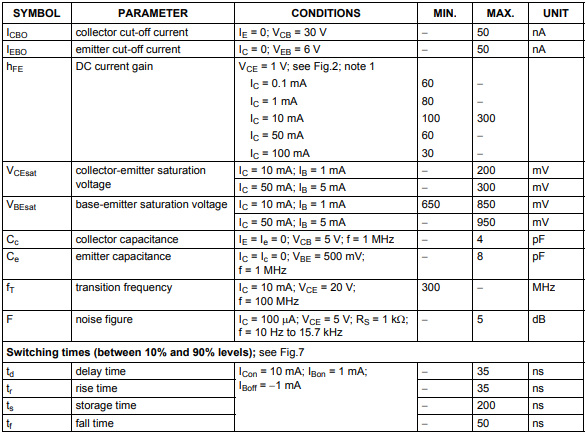

3. CHARACTERISTICS
4. APPLICATIONS
1. General amplification and switching.
5. Pin configuration

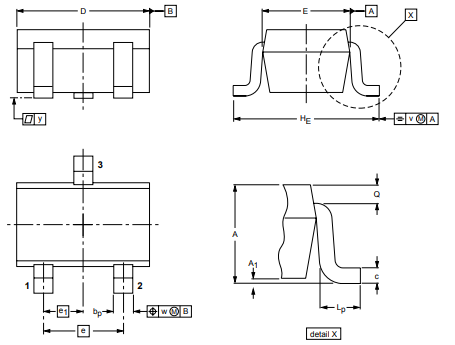

6. Package overview
