1. DESCRIPTION
The PS2561F-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2561F-1 is in a plastic DIP (Dual In-line Package) and the PS2561FL-1 is lead bending type (Gull-wing) for surface mount.
2. FEATURES
1. Operating ambient temperature: 110°C
2. High Isolation voltage (BV = 5 000 Vr.m.s.)
3. High collector to emitter voltage (VCEO = 80 V)
4. High current transfer ratio (CTR = 450% TYP.)
5. High-speed switching (tr = 5 μs TYP., tf = 7 μs TYP.)
6. Embossed tape product: PS2561FL-1-F3 : 2 000 pcs/reel
7. Pb-Free product
8. Safety standard
3. APPLICATIONS
1. Power meter
2. Telephone/FAX.
3. FA/OA equipment
4. Programmable logic controller
4. PACKAGE DIMENSIONS

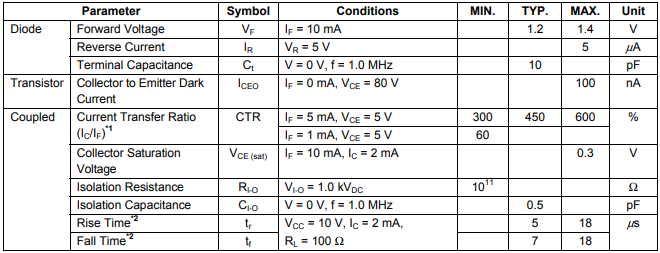

5. ELECTRICAL CHARACTERISTICS
