DESCRIPTION
NPN switching transistor in a SOT223 plastic package. PNP complement: PZT4403.
FEATURES
• High current (max. 600 mA)
• Low voltage.
APPLICATIONS
• Switching and linear amplification in industrial and consumer applications.

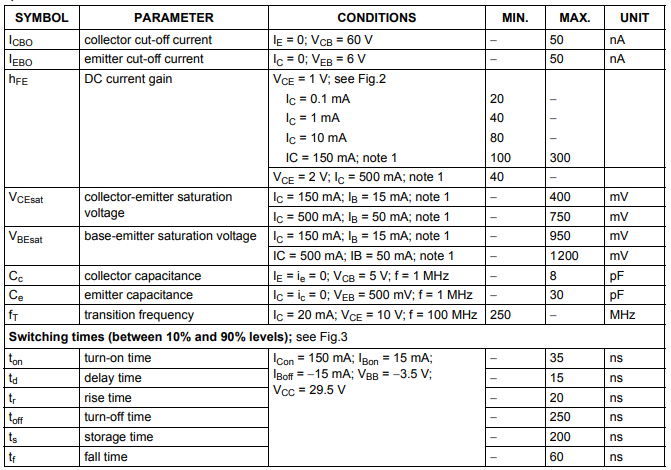

CHARACTERISTICS
Tj = 25 °C unless otherwise specified
Note
1. Pulse test: tp ≤ 300 µs; δ ≤ 0.02.

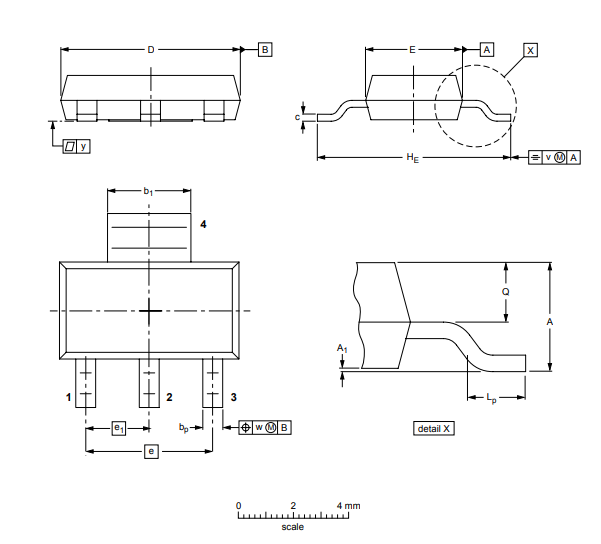

PACKAGE OUTLINE
Plastic surface mounted package; collector pad for good heat transfer; 4 leads
