1. Feature
1. Lead-free surface treatment/compliant with RoHS (Note 1) ("P" suffix indicates Compliance. See ordering information)
2. For surface mount applications
3. High current capability
4. Very low thermal resistance
5. Halogen-free can be provided upon request by adding the suffix "-HF"
6. Epoxy resin meets UL 94 V-0 flammability rating
7. Moisture sensitivity level 1
2. Maximum rating
1. Operating junction temperature range: -55⁰C to +150⁰C
2. Storage temperature range: -55⁰C to +150⁰C
3. Thermal resistance: 10°C/W junction to lead
4. Thermal resistance: 18°C/W junction to case
5. Thermal resistance: 50°C/W junction to environment
3. Product Size

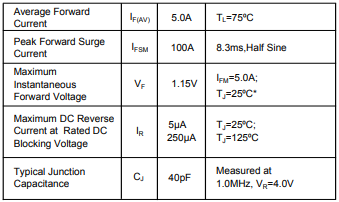

4. Electrical Characteristics
