1. Describe
The S9S08SG16E1CTG is a member of the low-cost, high-performance HCS08 family of 8-bit microcontrollers unit (MCU). All MCUs in this family use the enhanced HCS08 core and offer a variety of Module, memory size, memory type, and package type. high temperature equipment Meet or exceed AEC Class 0 requirements, allowing them to operate at temperatures up to 150°C.
2. Feature
1. 8-bit HCS08 central processing unit (CPU)
- 40 MHz HCS08 CPU (Central Processing Unit)
- 36 MHz HCS08 CPU above 125 °C
- HC08 instruction set with BGND instruction added
- Supports up to 32 interrupt/reset sources
2. On-chip memory
- Flash read/program/erase over full operating voltage and temperature range
- Random Access Memory (RAM)
3. Power saving mode
- Two very low power stop modes
- Power saving standby mode
- Low-power real-time interrupts for run, wait and stop
4. Clock Source Options
- Oscillator (XOSC) – Loop Control Pierce Oscillator; crystal or ceramic resonator range from 31.25kHz to 38.4kHz or 1MHz to 16MHz
- Internal Clock Source (ICS) – The Internal Clock Source block contains a Frequency Locked Loop (FLL) controlled by an internal or external reference. Trim of Internal Reference Allows 0.2% Resolution and 1.5% Temperature Deviation –40 to 125 °C or > 125 °C and 3% Voltage Deviation; Bus Supported Frequency from 2MHz to 20MHz.
5. System Protection
- Watchdog computer operating normally (COP) reset, optionally running from dedicated 1-kHz internal clock source or bus clock
- Low voltage detection with reset or interrupt; selectable travel point
- Illegal opcode detection with reset
- Illegal address detection with reset
- Flash block protection
6. Development Support
- One-wire background debugging interface
- Breakpoint feature allows setting a single breakpoint during in-circuit debugging (plus two breakpoints in the on-chip debug module)
- On-chip In-Circuit Emulation (ICE) debug module with two comparators and nine trigger modes. Eight deep FIFOs for storing stream address changes and event-only data. The debug module supports marked and forced breakpoints.

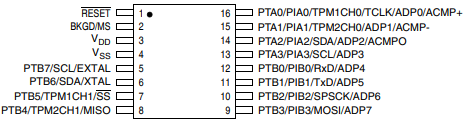

3. Pin configuration
4. Peripherals
1. ADC - 12 channels, 10-bit resolution, 2.5 µs conversion time, auto-compare, temperature sensor, internal bandgap reference channel; operates in stop3
2. ACMP – analog comparator with selectable interrupt on rising, falling or either edge of comparator output; compare option with fixed Internal bandgap voltage reference; output can be optionally routed to TPM module; operates in stop3
3. SCI – full duplex non-return-to-zero (NRZ); LIN master extended interrupt generation; LIN slave extended interrupt detection; wake-up on active edge
4. SPI—full-duplex or single-wire bidirectional; double-buffered transmit and receive; master or slave; MSB-first or LSB-first shift
5. IIC – up to 100 kbps at maximum bus load; multi-master operation; programmable slave addresses; interrupt-driven byte-by-byte data transfers; supports broadcast mode and 10-bit addressing
6. MTIM – 8-bit modulo counter with 8-bit prescaler and overflow interrupt
7. TPMx – Two 2-channel timer pwm modules (TPM1, TPM2); selectable input capture, output compare or buffered edge or center-aligned PWM on each channel
8. RTC – (Real Time Counter) 8-bit modulo counter with binary or decimal based prescaler; external clock source for precise time base, time, calendar or task scheduling functions; free running on-chip low power consumption Oscillator (1 kHz), requires no wake-up cycles from external components, operates in all MCU modes
5. Input Output
1. 16 general purpose I/O pins (GPIO)
2. 8 interrupt pins with selectable polarity
3. Linked output option for PTB[5:2] and PTC[3:0]; allows a single write to change the state of multiple pins
4. Hysteresis and configurable pull-up devices on all input pins; configurable slew rate and drive strength on all output pins.
