• Manufacturer Part# SI4228DY-T1-GE3
  • Product CategoryDiscrete Semiconductor Products
  • Short DescriptionMOSFET 2N-CH 25V 8A 8-SOICMosfet Array 2 N-Channel...
  • More DetailN/A
In Stock: 1000

Can ship immediately

Technical Details

  • Series:TrenchFET®
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • FET Type:2 N-Channel (Dual)
  • FET Feature:Logic Level Gate
  • Drain to Source Voltage (Vdss):25V
  • Current - Continuous Drain (Id) @ 25°C:8A
  • Rds On (Max) @ Id, Vgs:18 mOhm @ 7A, 10V
  • Vgs(th) (Max) @ Id:1.4V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:25nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds:790pF @ 12.5V
  • Power - Max:3.1W
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package:8-SO
  • Base Part Number:SI4228

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. FEATURES

    1. Halogen-free According to IEC 61249-2-21 Definition

    2. TrenchFET® Power MOSFET

    3. 100 % Rg and UIS Tested

    4. Compliant to RoHS Directive 2002/95/EC

2. APPLICATIONS

    1. Synchronous Buck Converter

    2. DC/DC Converter

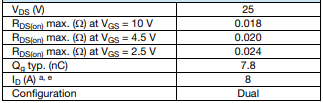

3. PRODUCT SUMMARY

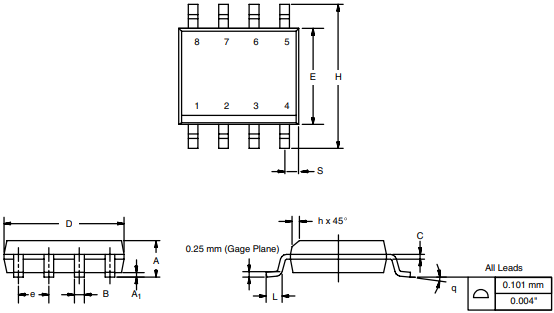

4. Package Information
