1. Feature
1. For surface mount applications
2. Pyrometallurgical bonding contacts
3. Able to meet the environmental protection standards of MIL-STD-19500
4. High reliability
5. Immerse in a solder bath at 265°C for 10 seconds
6. Provide lead-free surface treatment/RoHS compatible version
2. Mechanical data
1. Housing material: molded plastic. UL flammability classification level 94V-0
2. Moisture sensitivity: According to J-STD-020C level 1
3. Lead-free plating (dumb tin) is also available.
4. Terminal: solderable, comply with MIL-STD-202, method 208
5. Polarity: cathode band or notch
6. Approximate weight: 0.093 grams

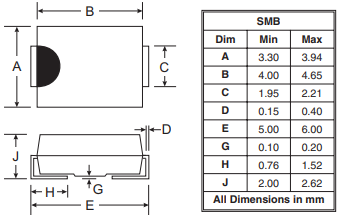

3. Package overview

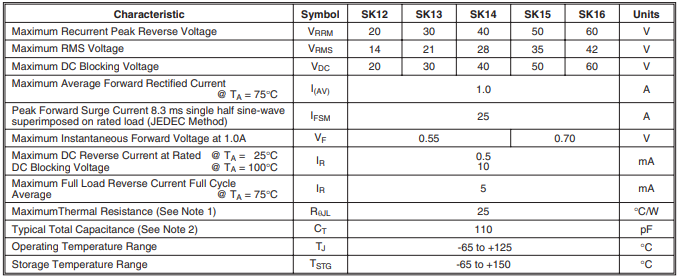

4. Electrical characteristics
