SLD8S22A

1. Description

The SLD8S Series is SMTO-263 packaged with leaded modification and is designed to provide precision overvoltage protection for sensitive electronics.

2. Features

   1. AEC-Q101 qualified

   2. SMTO-263 package, and foot print is compatible to industrial popular DO218AB package

   3. Meet ISO7637-2 5a/5b protection and ISO16750 load dump test (refer to APP note for details)

   4. VBR @ TJ = VBR@25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)

   5. Glass passivated chip junction in modified TO263 package

   6. IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)

   7. ESD protection of data lines in accordance with IEC 61000-4-2

   8. EFT protection of data lines in accordance with IEC 61000-4-4

   9. Fast response time: typically less than 1.0ps from 0 Volts to BV min

 10. Excellent clamping capability

 11. Low incremental surge resistance

 12. Plastic package is flammability rated V-0 per Underwriters Laboratories

 13. Meet MSL level 1, per J-STD-020, LF maximun peak of 260°C

 14. For surface mounted applications to optimize board space

 15. Low profile package

 16. High temperature to reflow soldering guaranteed: 260°C/10sec at terminals

 17. Matte tin lead–free plated

 18. Halogen free and RoHS compliant

 19. Pb-free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin (Sn) (IPC/ JEDEC J-STD-609A.01)

3. Applications

  Designed to protect sensitive electronics from:

      - Inductive Load Switching

      - Alternator Load Dump

4. Functional Diagra

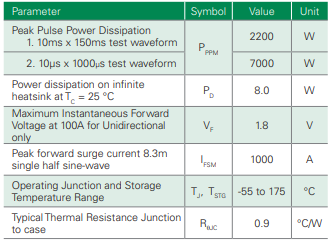

5. Maximum Ratings and Thermal Characteristics

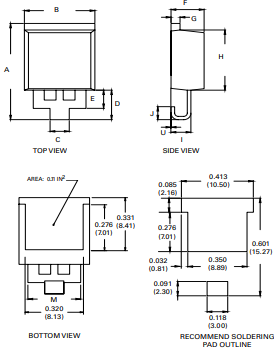

6. Dimensions
