1. Features
1. 1.0W Power Dissipation
2. Ideally Suited for Automated Assembly
3. 5.1V - 39V Nominal Zener Voltage Range
4. Standard VZ Tolerance is ± 5%
5. Lead Free Finish; RoHS Compliant
6. Halogen and Antimony Free. “Green” Device
2. Mechanical Data
1. Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
2. Moisture Sensitivity: Level 1 per J-STD-020
3. Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
4. Polarity: Cathode Notch or Cathode Band
5. Weight: 0.064 grams (Approximate)

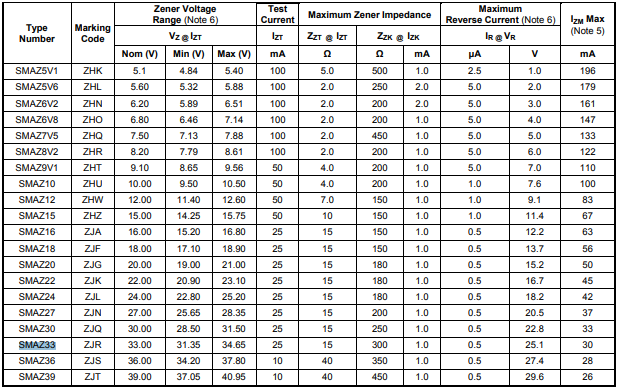

3. Electrical Characteristics
4. Package overview
