1. Describe
This single inverter gate is designed for 1.65V to 5.5V VCC operation. SN74LVC1G04 implements the Boolean function Y=A. This device is fully suitable for partial power-off applications using Ioff. The Ioff circuit disables the output, Prevent the damaged current from flowing back through the device when the power is off.
2. FEATURES
1. Qualified for Automotive Applications
2. AEC-Q100 Qualified with the Following Results
– Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level H2
– Device CDM ESG Classification Level C4B
3. ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
4. Supports 5-V VCC Operation
5. Inputs Accept Voltages to 5.5 V
6. Max tpd of 3.3 ns at 3.3 V
7. Low Power Consumption, 10-μA Max ICC
8. ±24-mA Output Drive at 3.3 V
9. Ioff Supports Partial-Power-Down Mode Operation
10. Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
3. Pin configuration

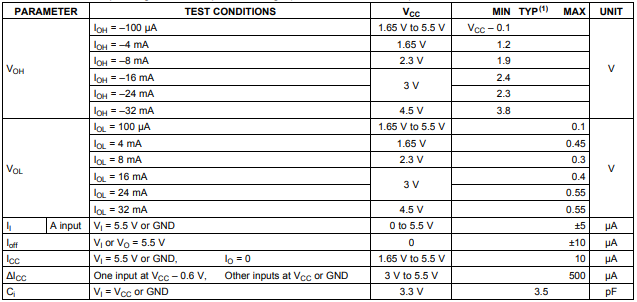

4. Electrical Characteristics

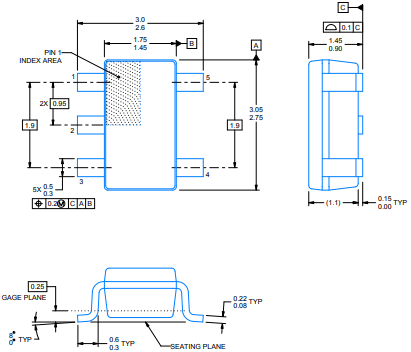

5. Package overview
