1. Description
This dual Schmitt-trigger inverter is designed for1.65-V to 5.5-V VCC operation. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC2G14 device contains two inverters and performs the Boolean function Y = A. The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals. This device is fully specified for partial-power-down applications using Ioff. The off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
2. Features
1. Available in the TI NanoFree™ Package
2. Supports 5-V VCC Operation
3. Inputs Accept Voltages to 5.5 V
4. Max tpd of 5.4 ns at 3.3 V
5. Low-Power Consumption, 10-μA Maximum ICC
6. ±24-mA Output Drive at 3.3 V
7. Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
8. Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
9. loff Supports Live Insertion, Partial-Power-Down Mode,and Back-Drive Protection
10. Support Translation Down (5 V to 3.3 V; 3.3 V to 1.8 V)
11. Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
3. Applications
1. Body Control Modules
2. Engine Control Modules
2. Arcade, Casino, and Gambling Machines
3. Servers and High-Performance Computing
4. EPOS, ECR, and Cash Drawer
5. Routers
6. Desktop PC
4. Pin Configuration

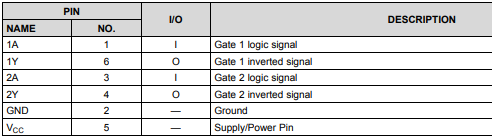

5. Pin Functions

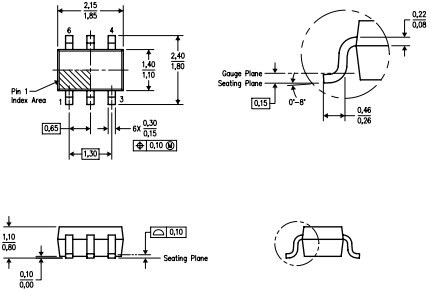

6. PACKAGE OUTLINE
