1. Description
SP5002-06TTG series is a highly integrated common mode Filter (CMF) provides both ESD protection and EMI Common mode noise filtering for systems that use high noise High-speed differential serial interface, such as MIPI D-PHY. SP5002 series can protect and filter three differentials Wire pairs in a RoHS-compliant small TDFN-16 package with Compared with discrete solutions, it saves cost and space.
2. Feature
1. Large differential bandwidth> 2GHz
2. High common mode stop band attenuation:
> 25 dB at 700 MHz
> 30 dB at 800 MHz
3. Each channel ±15kV ESD protection (IEC 61000-4-2 Level 4, contact discharge and ±30kV air discharge)
4. TDFN-16 4.00mm×2.00mm×0.75mm package, lead pitch is 0.50mm
5. RoHS compliant, lead-free packaging
6. Moisture Sensitivity Level (MSL-1)
3. Application field
1. MIPI D-PHY (CSI-2, DSI, Etc.) and Digital camera
2. HDMI / DVI display cell phone

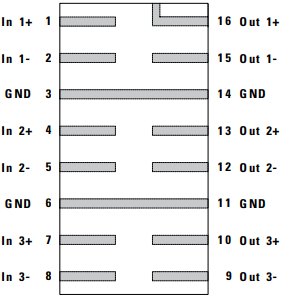

4. Pin configuration

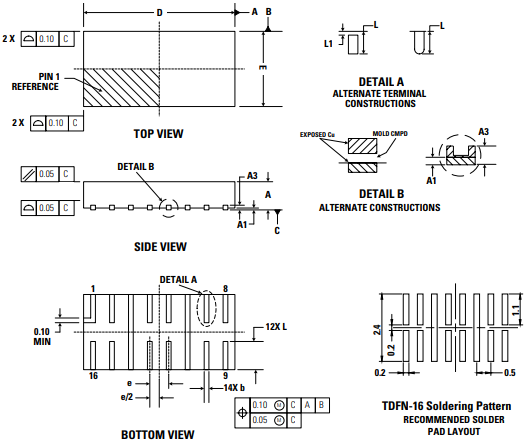

5. Package Dimensions
