SPC5606BF1MLQ6

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

This family of 32-bit system-on-chip (SoC) microcontrollers is the latest achievement in integrated automotive application controllers. It belongs to an expanding family of automotive-focused products designed to address the next wave of body electronics applications within the vehicle. The advanced and cost-efficient e200z0h host processor core of this automotive controller family complies with the Power Architecture technology and only implements the VLE (variable-length encoding) APU (Auxiliary Processor Unit), providing improved code density. It operates at speeds of up to 64 MHz and offers high performance processing optimized for low power consumption. It capitalizes on the available development infrastructure of current Power Architecture devices and is supported with software drivers, operating systems and configuration code to assist with users implementations.

2. Features

    1. Single issue, 32-bit CPU core complex (e200z0h)

        - Compliant with the Power Architecture® technology embedded category

        - Enhanced instruction set allowing variable length encoding (VLE) for code size footprint reduction.

        - With the optional encoding of mixed 16-bit and 32-bit instructions, it is possible to achieve significant code size footprint reduction.

    2. Up to 1.5 MB on-chip code flash memory supported with the flash memory controller

    3. 64 (4 × 16) KB on-chip data flash memory with ECC

    4. Up to 96 KB on-chip SRAM

    5. Memory protection unit (MPU) with 8 region descriptors and 32-byte region granularity on certain family members

    6. Interrupt controller (INTC) capable of handling 204 selectable-priority interrupt sources

    7. Frequency modulated phase-locked loop (FMPLL)

    8. Crossbar switch architecture for concurrent access to peripherals, Flash, or RAM from multiple bus masters

    9. 16-channel eDMA controller with multiple transfer request sources using DMA multiplexer

  10. Boot assist module (BAM) supports internal Flash programming via a serial link (CAN or SCI)

  11. Timer supports I/O channels providing a range of 16-bit input capture, output compare, and pulse width modulation functions (eMIOS)

  12. 2 analog-to-digital converters (ADC): one 10-bit and one 12-bit

  13. Cross Trigger Unit to enable synchronization of ADC conversions with a timer event from the eMIOS or PIT

  14. Up to 6 serial peripheral interface (DSPI) modules

  15. Up to 10 serial communication interface (LINFlex) modules

  16. Up to 6 enhanced full CAN (FlexCAN) modules with configurable buffers

  17. 1 inter-integrated circuit (I2C) interface module

  18. Up to 149 configurable general purpose pins supporting input and output operations (package dependent)

  19. Real-Time Counter (RTC)

  20. Clock source from internal 128 kHz or 16 MHz oscillator supporting autonomous wakeup with 1 ms resolution with maximum timeout of 2 seconds

  21. Optional support for RTC with clock source from external 32 kHz crystal oscillator, supporting wakeup with 1 sec resolution and maximum timeout of 1 hour

  22. Up to 8 periodic interrupt timers (PIT) with 32-bit counter resolution

  23. Nexus development interface (NDI) per IEEE-ISTO 5001-2003 Class Two Plus

  24. Device/board boundary scan testing supported per Joint Test Action Group (JTAG) of IEEE (IEEE 1149.1)

  25. On-chip voltage regulator (VREG) for regulation of input supply for all internal levels

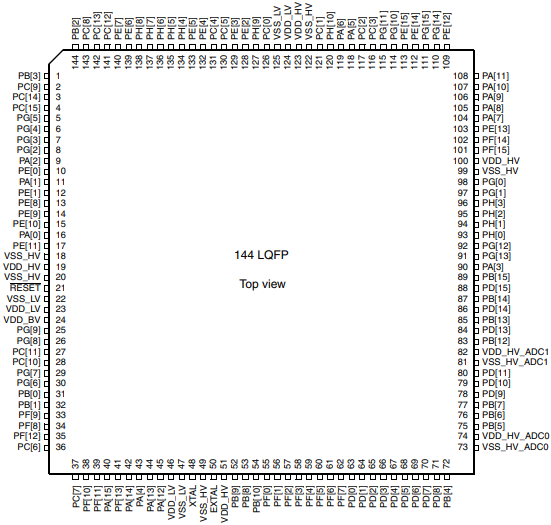

3. Pin configuration
