1. FEATURES
1. Low profile package
2. Ideal for automated placement
3. Guardring for overvoltage protection
4. Low power losses, high efficiency
5. Very low forward voltage drop
6. High surge capability
7. Meets MSL level 1, per J-STD-020, LF maximum peak 260 °C
8. AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3

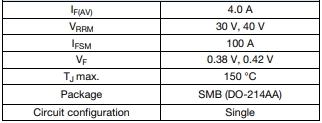

2. PRIMARY CHARACTERISTICS
3. MECHANICAL DATA
1. Case: SMB (DO-214AA)
2. Molding compound meets UL 94 V-0 flammability rating
3. Base P/N-E3 - RoHS-compliant, commercial grade
4. Base P/N-M3 - halogen-free, RoHS-compliant, commercial grade
5. Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
6. Base P/NHM3_X - halogen-free, RoHS-compliant, and
7. AEC-Q101 qualified
8. Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
9. E3, M3, HE3, and HM3 suffix meets JESD 201 class 2 whisker test
10. Polarity: color band denotes cathode end
4. TYPICAL APPLICATIONS
For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

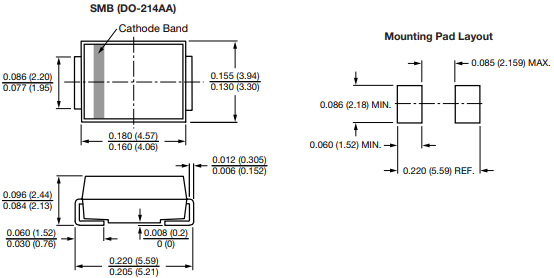

5. Package overview
