STM8L052C6T6

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

The medium-density value line STM8L052C6T6 devices are members of the STM8L ultra-lowpower 8-bit family. The value line STM8L05xxx ultra-low-power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations. The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-application debugging and ultra-fast Flash programming. Medium-density value line STM8L052C6 microcontrollers feature embedded data EEPROM and low-power, low-voltage, single-supply program Flash memory. All devices offer 12-bit ADC, real-time clock, 16-bit timers, one 8-bit timer as well as standard communication interface such as SPI, I2C, USART and 4x28-segment LCD. The 4x 28-segment LCD is available on the medium-density value line STM8L052C6. The STM8L052C6 operates from 1.8 V to 3.6 V and is available in the -40 to +85 °C temperature range. The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools. All value line STM8L ultra-low-power products are based on the same architecture with the same memory mapping and a coherent pinout.

2. Features

    1. Operating conditions

        – Operating power supply: 1.8 V to 3.6 V

        – Temperature range: -40 °C to 85 °C

    2. Low-power features

        – Five low-power modes: Wait, Low-power run (5.1 µA), Low-power wait (3 µA), Activehalt with full RTC (1.3 µA), Halt (350 nA)

        – Consumption: 195 µA/MHz + 440 µA

        – Ultra-low leakage per I/0: 50 nA

        – Fast wakeup from Halt: 4.7 µs

    3. Advanced STM8 core

        – Harvard architecture and 3-stage pipeline

        – Max freq. 16 MHz, 16 CISC MIPS peak

        – Up to 40 external interrupt sources

    4. Reset and supply management

        – Low-power, ultra-safe BOR reset with five selectable thresholds

        – Ultra-low-power POR/PDR

        – Programmable voltage detector (PVD)

    5. Clock management

        – 32 kHz and 1 to 16 MHz crystal oscillator

        – Internal 16 MHz factory-trimmed RC

        – Internal 38 kHz low consumption RC

        – Clock security system

    6. Low-power RTC

        – BCD calendar with alarm interrupt

        – Auto-wakeup from Halt w/ periodic interrupt

    7. LCD: up to 4x28 segments w/ step-up converter

    8. Memories

        – 32 KB Flash program memory and 256 bytes data EEPROM with ECC, RWW

        – Flexible write and read protection modes

        – 2 Kbytes of RAM

    9. DMA

        – Four channels supporting ADC, SPI, I2C, USART, timers

        – One channel for memory-to-memory

  10. 12-bit ADC up to 1 Msps/25 channels

        – Internal reference voltage

  11. Timers

        – Two 16-bit timers with two channels (used as IC, OC, PWM), quadrature encoder

        – One 16-bit advanced control timer with three channels, supporting motor control

        – One 8-bit timer with 7-bit prescaler

        – Two watchdogs: one Window, one Independent

        – Beeper timer with 1-, 2- or 4-kHz frequencies

  12. Communication interfaces

        – Synchronous serial interface (SPI)

        – Fast I2C 400 kHz SMBus and PMBus

        – USART (ISO 7816 interface and IrDA)

  13. Up to 41 I/Os, all mappable on interrupt vectors

  14. Development support

        – Fast on-chip programming and nonintrusive debugging with SWIM

        – Bootloader using USART

3. Pin configuration

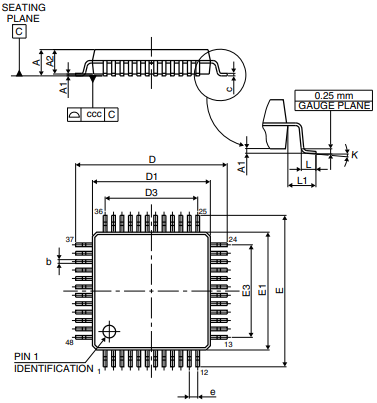

4. Package overview
