1. Describe
These dual monolithic silicon Zener diodes are designed for Applications requiring transient overvoltage protection capability. them For voltage and ESD sensitive equipment such as Computers, printers, business machines, communication systems, Medical equipment and other applications. their double knot The anode design protects two separate lines using only one package. These anode designs use only one package to protect two separate lines. This device is ideal for situations where board space is at a premium.
2. Feature
1. SOT-23 package allows two separate unidirectional configuration or single bidirectional configuration
2. Standard Zener Breakdown Voltage Range - 5.6 V to 47 V
3. Peak Power - 24 or 40 W @ 1.0 ms (unidirectional), 6 waveforms per graph
4. ESD level:
- Class 3B according to Human Body Model (> 16 kV)
- Class C (> 400 V) per machine model
5. IEC61000-4-2 Class 4 ESD level, ±30 kV contact discharge
6. Maximum clamping voltage @ peak pulse current
7. Low leakage current < 5.0 A
8. Flammability rating UL 94 V−0
9. SZ prefix for automotive and other applications where uniqueness is required Field and control change requirements; AEC-Q101 qualified and PPAP capability
10. These devices are lead free and RoHS compliant
3. Pin configuration

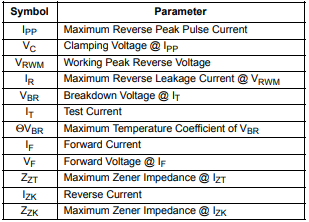

4. ELECTRICAL CHARACTERISTICS
5. Product description
