1. Describe
Provide three complete series of Zener diodes, convenient, Surface mount plastic SOD-123 package. These devices provide A convenient alternative to lead-free 34 package styles. Zener The voltage in this series is specified at the junction of the thermal device balance.
2. Feature
1. 500 mW rating on FR-4 or FR-5 board
2. Wide Zener reverse voltage range − 2.4 V to 110 V @ heat balance*
3. Packages designed to optimize automated circuit board assembly
4. Small package size suitable for high-density applications
5. General purpose, medium current
6. Class 3 (> 16 kV) ESD ratings for each human body model
7. SZ prefix, suitable for automobiles and other applications that require uniqueness Site and control change requirements; AEC-Q101 qualified and PPAP capability
8. These are lead-free devices
3. Mechanical characteristics
1. Shell: no gap, transfer molding, thermosetting plastic shell
2. Surface treatment: corrosion-resistant surface treatment, easy to weld
3. Maximum shell temperature for welding: 260°C 10 seconds
4. POLARITY: The cathode is indicated by the polarity band
5. Flammability rating: UL 94 V−0

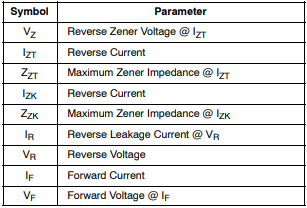

4. ELECTRICAL CHARACTERISTICS

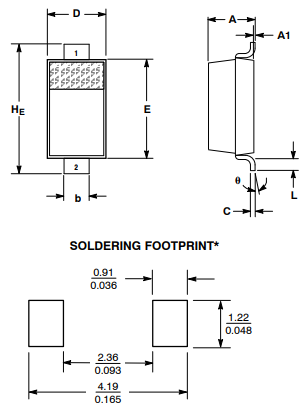

5. Package overview
