Description

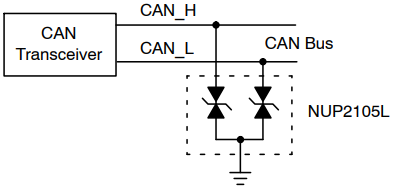

SZNUP2105LT3G is designed to protect CAN Transceivers in ESD and high-speed networks Other harmful transient voltage events. The device provides A single compact provides bidirectional protection for each data line SOT-23 package provides a low-cost option for system designers Improve system reliability and meet strict EMI requirements.
Feature
1. 350 W peak power consumption per line (8/20 second waveform)
2. Low reverse leakage current (<100 nA)
3. Low capacitance high speed CAN data rate
4. IEC compatibility:
−IEC 61000−4−2 (ESD): Level 4, 30 kV
− IEC 61000-4-4 (EFT): 40 A – 5/50 ns
− IEC 61000−4−5 (lighting) 8.0 A (8/20 s)
5. ISO 7637-2 pulse 2a: repeated load switch off, 9.5 A
6. ISO 7637−3 pulse 3a, b: fast transients in repeated load switching, 50A
7. Flammability rating UL 94 V-0
8. Suitable for cars and other unique SZ prefixes Site and control change requirements; passed AEC-Q101 certification and With PPAP
9. These devices are lead-free, halogen-free/brominated flame retardant and RoHS compliant Compliance
Application field
1. Industrial Control Network
- Smart Power Distribution System (SDS®)
- DeviceNet™
2. Car network
- Low speed and high speed CAN Fault-tolerant CAN

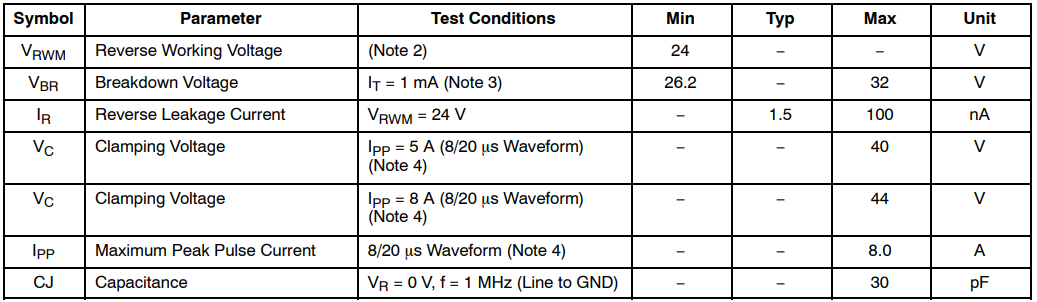

ELECTRICAL CHARACTERISTICS
1. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
2. Surge protection devices are normally selected according to the working peak reverse voltage (VRWM), which should be equal or greater than the DC or continuous peak operating voltage level.
3. VBR is measured at pulse test current IT.
