1. DESCRIPTION
The TCLT1600 consists of a phototransistor optically coupled to 2 gallium arsenide infrared-emitting diodes in an SOP 4-pin wide body package.
2. FEATURTES
1. Low profile package
2. Extra low coupling capacity - typical 0.2 pF
3. High common mode rejection
4. AC input
5. Creepage current resistance according to VDE 0303/IEC 60112 comparative tracking index: CTI ≥ 175
6. Creepage distance > 8 mm
3. APPLICATIONS
1. Switch-mode power supplies
2. Line receiver
3. Computer peripheral interface
4. Microprocessor system interface
5. Reinforced isolation provides circuit protection against electrical shock (safety class II)
6. Circuits for safe protective separation against electrical shock according to safety class II (reinforced isolation):
- for appl. class I to IV at mains voltage ≤ 300 V
- for appl. class I to III at mains voltage ≤ 600 V according to DIN EN 60747-5-2 (VDE 0884)
4. ELECTRICAL CHARACTERISTICS

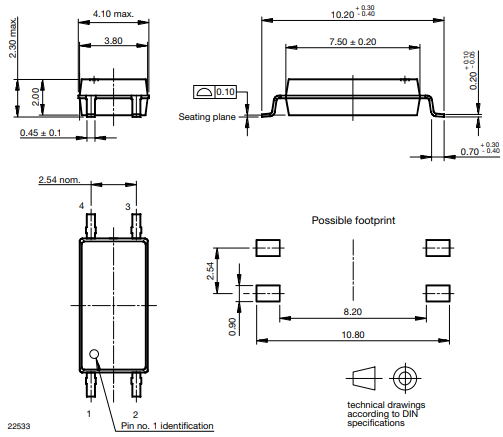

5. PACKAGE DIMENSIONS
