1. Description
The TLC2272 and TLC2274CPW are dual and quadruple operational amplifiers from Texas Instruments. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLC227x family offers 2 MHz of bandwidth and 3 V/μs of slew rate for higher-speed applications. These devices offer comparable AC performance while having better noise, input offset voltage, and power dissipation than existing CMOS operational amplifiers. The TLC227x has a noise voltage of 9 nV/√Hz, two times lower than competitive solutions.
2. Features
1. Output Swing Includes Both Supply Rails
2. Low Noise: 9 nV/√Hz Typical at f = 1 kHz
3. Low-Input Bias Current: 1-pA Typical
4. Fully-Specified for Both Single-Supply and SplitSupply Operation
5. Common-Mode Input Voltage Range Includes Negative Rail
6. High-Gain Bandwidth: 2.2-MHz Typical
7. High Slew Rate: 3.6-V/μs Typical
8. Low Input Offset Voltage: 950 μV Maximum at TA = 25°C
9. Macromodel Included
10. Performance Upgrades for the TLC272 and TLC274
11. Available in Q-Temp Automotive
3. Applications
1. White Goods (Refrigerators, Washing Machines)
2. Hand-held Monitoring Systems
3. Configuration Control and Print Support
4. Transducer Interfaces
5. Battery-Powered Applications
4. Pin Configuration

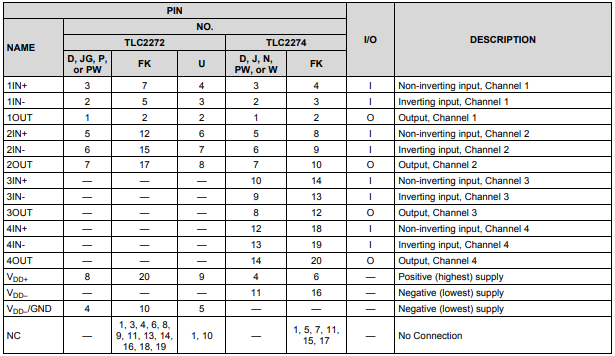

5. Pin Functions

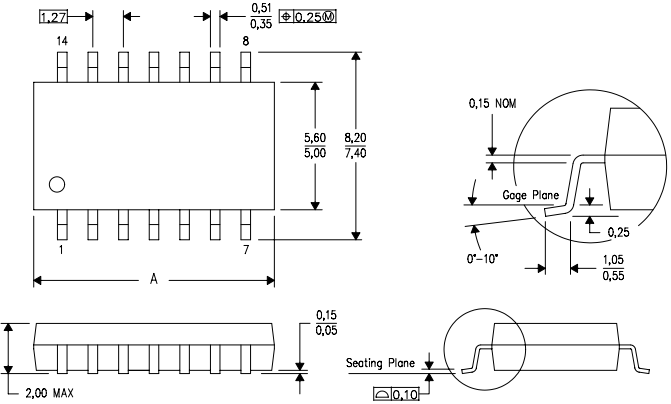

6. Package overview
