1. Description
The Toshiba TLP291-4(GB-TP,E) consists of photo transistor, optically coupled to a gallium arsenide infrared emitting diode. TLP291-4 is housed in the SO16 package, very small and thin coupler. Since TLP291-4 are guaranteed wide operating temperature (Ta=-55 to 110 ˚C), it’s suitable for high-density surface mounting applications such as programmable controllers and hybrid ICs.
2. Features
1. Collector-Emitter Voltage : 80 V (min)
2. Current Transfer Ratio : 50% (min)
3. Rank GB : 100% (min)
4. Isolation Voltage : 2500 Vrms (min)
5. Guaranteed performance over -55 to 110 ˚C
6. UL (under preparation) : UL1577 , File No. E67349
7. cUL (under preparation) : CSA Component Acceptance Service No.5A
8. BSI (under prerapation) :
- BS EN 60065: 2002,
- BS EN 60950-1: 2006

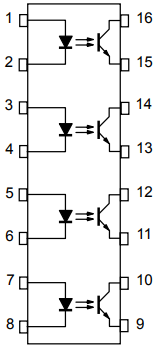

3. Pin Configuration
