TM4C1294NCPDTI3R

Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.

In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1294NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.

Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.

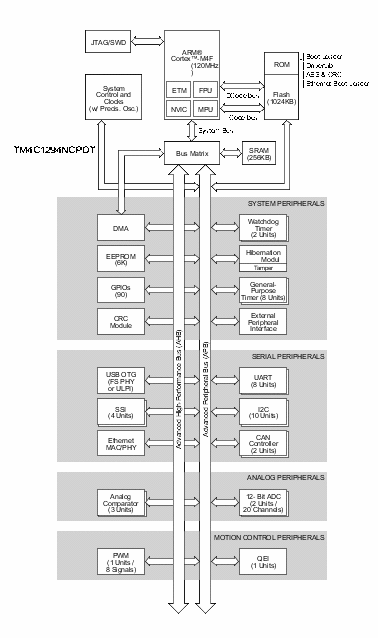

1.Performance

   1. ARM® Cortex™-M4F processor core

   2. 120-MHz operation; 150 DMIPS performance

   3. 1024 KB Flash memory

   4. 256 KB single-cycle System SRAM

   5. 6KB of EEPROM

   6. Internal ROM loaded with TivaWare™ for C Series software

   7. 8-/16-/32- bit dedicated External Peripheral Interface (EPI) for peripherals and memory

2.Security

   1. Cyclical Redundancy Check (CRC) hardware with 16-/32-bit Hash function that supports four CRC forms

   2. Support for four tamper inputs and configurable tamper event response

3.Communication Interfaces

   1. Eight Universal Asynchronous Receivers/Transmitters (UARTs)

   2. Four Quad Synchronous Serial Interface (QSSI) modules with Bi-, Quad- and advanced SSI support

   3. Ten Inter-Integrated Circuit (I2C) modules with four transmission speeds including high-speed mode

   4. Two Controller Area Network (CAN) 2.0 A/B controllers

   5. 10/100 Ethernet MAC

   6. Ethernet PHY with IEEE 1588 PTP hardware support

   7. Universal Serial Bus (USB) 2.0 OTG/Host/Device with ULPI interface option and Link Power Management (LPM) support

4.System Integration

   1. ARM® PrimeCell® 32-channel configurable Micro Direct Memory Access (µDMA) controller

   2. Eight 16/32-bit General-Purpose Timer (GPTM) blocks

   3. Two watchdog timers

   4. Low-power battery-backed Hibernation module

   5. 15 physical General-Purpose Input/Output (GPIO) blocks

5.Advanced Motion Control

   1. One Pulse Width Modulator (PWM) module, with four PWM generator blocks and a control block, for a total of 8 PWM outputs

   2. One Quadrature Encoder Interface (QEI) module

6.Analog Support

   1. Two 12-bit Analog-to-Digital Converter (ADC) modules, each with a maximum sample rate of one million samples/second

   2. Three independent integrated analog comparators

   3. 16 digital comparators

7.One JTAG module with integrated ARM Serial Wire Debug (SWD)

8.128-pin TQFP package

9.Operating Range (Ambient)

   1. Industrial (-40°C to 85°C) temperature range
