1. Description
The TOBY-L200-03S series includes very small LTE/3G/2G multi-mode modules in the form of TOBY LGA The size (152 pins, 35.6 x 24.8 mm) makes it easy to integrate into a compact design. TOBY-L2 series modules support up to six LTE frequency bands, five UMTS/DC-HSPA+ frequency bands and four GSM/(E)GPRS frequency band, used for voice and/or data transmission. TOBY-L2 series modules are compatible with other popular u-blox cellular modules in terms of size Series: This allows customers to take full advantage of their hardware and software Invest and provide a short time to market. The LTE category 4 data rates of these modules are up to 150 Mbit/s (downlink) and 50 Mbit/s (uplink) respectively. It is the ideal choice for applications that require the highest data rates and high-speed Internet access. Toby L2 Series modules are consumer fixed wireless terminals, mobile routers and Gateways and applications that require video streaming.

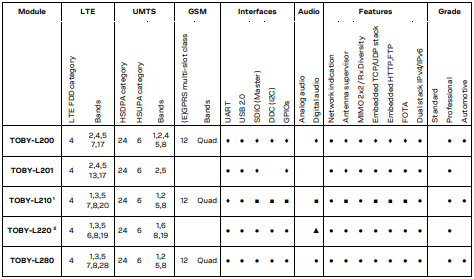

2. Product features

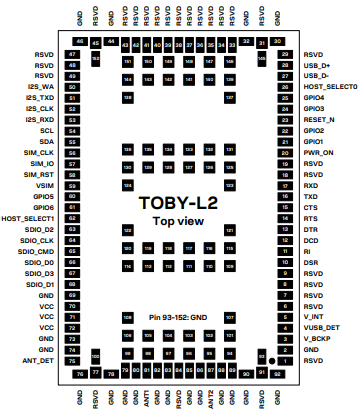

3. Pin assignment

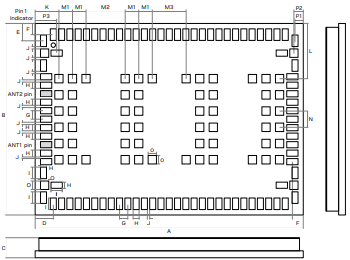

4. Mechanical specifications
