1. Description
TPD4E001DCKR is a four-channel transient voltage Electrostatic discharge based on suppressor (TVS) (ESD) Protection diode array. TPD4E001 was rated Dissipate ESD impact to the maximum extent As specified in the IEC 61000 4-2 international standard (Level 4). The device has an IO capacitance of 1.5pF Each channel makes it ideal for high-speed Data IO interface. Ultra-low leakage current (< 1 nA max) suitable for precision analog quantity Measurements in applications such as blood glucose meters And a heart rate monitor. TPD4E001 provides DRL (SOT), DBV (SOT23), DCK (SC-70), DRS (QFN) and DPK (PUSON) Package, rated temperature from –40°C to +85°C Operation. These devices provide higher IEC protection, lower Capacitance to reduce the clamping voltage and eliminate Input capacitance requirements.
2. Features
1. IEC 61000-4-2 ESD Protection (Level 4)
– ±8-kV Contact Discharge
– ±15-kV Air-Gap Discharge
2. 5.5-A Peak Pulse Current (8/20-µs Pulse)
3. IO Capacitance: 1.5 pF (Typical)
4. Low Leakage Current: 1 nA (Maximum)
5. Low Supply Current: 1 nA
6. 0.9-V to 5.5-V Supply-Voltage Range
7. Space-Saving DRL, DBV, DCK, DPK, and DRS Package Options
8. Alternate 2, 3, 6-Channel options Available: TPD2E001, TPD3E001, TPD6E001
3. Applications
1. USB 2.0
2. Ethernet
3. FireWire™ Serial Bus
4. LVDS
5. SVGA Video Connections
6. Glucose Meters
4. Pin Configuration

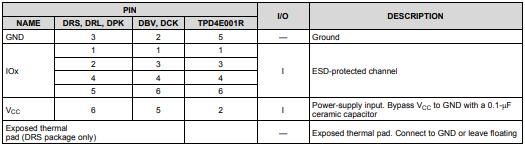

5. Pin Functions
