1. Describe
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2(Level 4). The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.
2. Features
1. Four-, Six-, and Eight-Channel EMI Filtering for Data Ports
2. –3 dB Bandwidth of 200 MHz
3. Greater than 25 dB attenuation at 1 GHz
4. IEC 61000-4-2 Level 4 ESD Protection
– ±12-kV Contact Discharge
– ±20-kV Air Gap Discharge
5. Pi-Style (C-R-C) Filter Configuration(R = 100 Ω, CTOTAL = 17 pF)
6. Low 10-nA Leakage Current
7. Easy Flow-Through Routing
3. Applications
1. Display Interfaces
2. Cell Phones
3. Tablets
4. SVGA Video Connections
5. Memory Interfaces
4. Pin Configuration

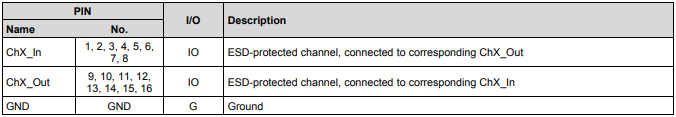

5. Pin Functions

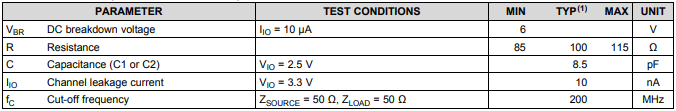

6. Electrical Characteristics

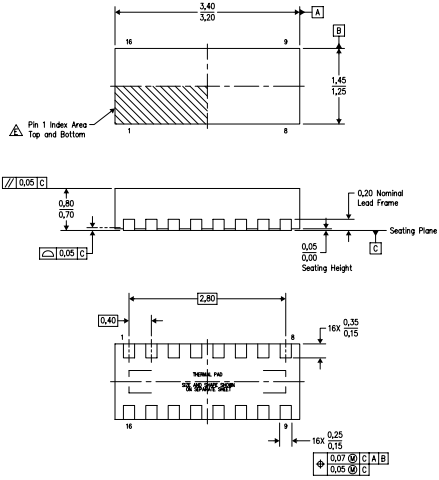

7. Package overview
