1. Describe
The TPS27S100BPWPT is a single-channel, fully protected, High-Side Switch with Integrated NMOS and Charge Pump. Comprehensive diagnostics and high-accuracy current monitoring functions enable intelligent control of the load. Adjustable current limiting function is greatly improved reliability of the entire system. device Diagnostic reports are supported in two versions at the same time Digital fault status and analog current monitoring outputs. Accurate current monitor and adjustable current limit Features distinguish it from the market.
2. Feature
1. 80-mΩ single-channel high-side switch with full diagnostic capabilities
– TPS27S100A: Open-drain status output
– TPS27S100B: Current monitor analog output
2. Wide operating voltage from 3.5 V to 40 V
3. Very low standby current, <0.5 µA
4. Operating Junction Temperature, –40 to 150°C
5. Input control, 3.3-V and 5-V logic compatible
6. High precision current monitor, ±30 mA at 1 A
7. Adjustable current limit (0.5A to 6A) with external resistor, ±20% at 0.5A
8. Diagnostic enable function for multiplexing MCU, analog or digital interface
9. IN and OUT pins have excellent ESD protection
– ±16 kV IEC 61000-4-2 ESD contact discharge
– ±4 kV IEC 61000-4-4 electrical fast transients
– ±1.0 kV/42 Ω IEC 61000-4-5 surge
10. Protect
– Overload and short circuit to ground protection
– Negative voltage clamp for inductive loads
– Under Voltage Lockout (UVLO) Protection
– Thermal shutdown and resettable swing
– Loss of earth protection
11. Diagnostics
– On and off status output Open load/short to supply detection
– Overload and short-to-ground detection
– Thermal shutdown and swing detection
12. Thermally Enhanced 14-Pin PWP or 16-Pin QFN Package
3. Application
1. programmable logic controller
2. Building automation
3. Telecom/Network

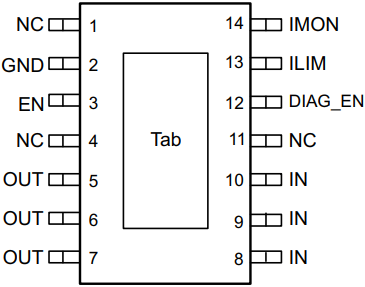

4. Pin configuration

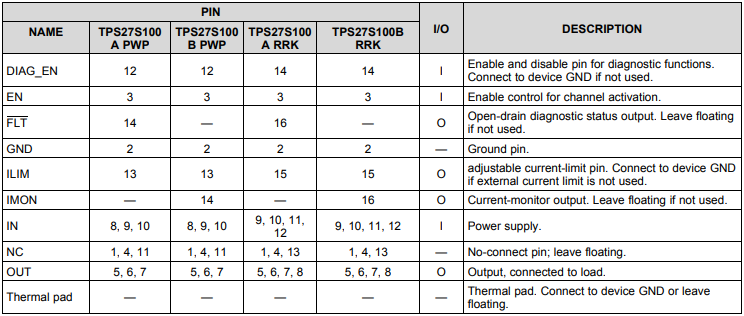

5. Pin Description
6. Application Information
The device is capable of driving a wide variety of resistive, inductive, and capacitive loads. Full diagnostics and high accuracy current-monitor features enable intelligent control of the load. An external adjustable current limit improves the reliability of the whole system by clamping the inrush or overload current.
