1. Description
The TPS610995YFFT device is synchronously boosted Converter with 1µA ultra-low quiescent current. This The device is designed to be used by Alkaline battery, Ni-MH rechargeable battery, Lithium manganese Battery or lithium ion rechargeable battery, Efficiency under light load conditions To achieve a longer battery life. TPS610995YFFT boost converter uses hysteresis Control the topology for maximum efficiency in Minimum quiescent current. Only consumes 1-µA The quiescent current under light load conditions can In a fixed case, the efficiency is as high as 75% under a load of 10µAOutput voltage version. It can also support up to 300 MA output current converted from 3.3 V to 5 V, and A voltage of up to 93% can be achieved under a load of 200mA. TPS610995YFFT also provides Down Mode and Down Mode. Direct operation for different applications. in In step-down mode, the output voltage can still be adjusted Reach the target value even if the input voltage is higher than the target voltage The output voltage. In the pass-through mode, the output
The voltage follows the input voltage. TPS610995YFFT exit Down mode and enter pass-through mode When VIN> VOUT + 0.5 V.
TPS610995YFFT supports true shutdown function When disabled, it will disconnect the load from Input power to reduce current consumption. TPS610995YFFT provides two adjustable output voltages Version and fixed output voltage version. it is Provide 6-ball 1.23mm x 0.88mm WCSP package Package and 6-pin 2mm x 2mm WSON package.
2. Features
1. 600 nA Ultra-Low IQ into VOUT Pin
2. 400 nA Ultra-Low IQ into VIN Pin
3. Operating Input Voltage from 0.7 V to 5.5 V
4. Adjustable Output Voltage from 1.8 V to 5.5 V
5. Fixed Output Voltage Versions Available
6. Minimum 0.8 A Switch Peak Current Limit
7. Regulated Output Voltage in Down Mode
8. True Disconnection During Shutdown
9. Up to 75% Efficiency at 10 µA Load with Fixed Output Voltage Versions
10. Up to 93% Efficiency from 10 mA to 300 mA Load
11. 6-Ball 1.23 mm x 0.88 mm WCSP package and 2- mm x 2-mm WSON package
12. Create a Custom Design Using the TPS61099x With the WEBENCH® Power Designer
3. Applications
1. Memory LCD Bias
2. Optical Heart Rate Monitor LED Bias
3. Wearable Applications
4. Low Power Wireless Applications
5. Portable Products
6. Battery Powered Systems
4. Pin Configuration and Functions

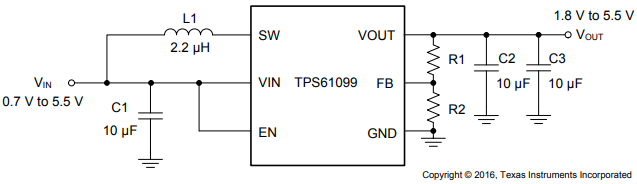

5. Typical Application Circuit

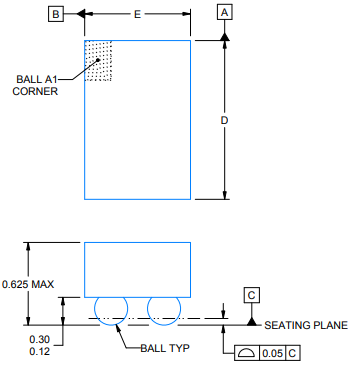

6. Packaging Information
