1. FEATURES
1. Low profile package
2. Ideal for automated placement
3. Glass passivated pallet chip junction
4. Ultrafast reverse recovery time
5. Low switching losses, high efficiency
6. High forward surge capability
7. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
8. AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3

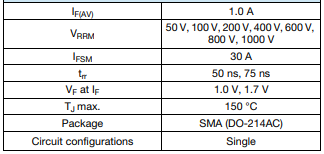

2. PRIMARY CHARACTERISTICS
3. APPLICATIONS
For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive, and telecommunication.

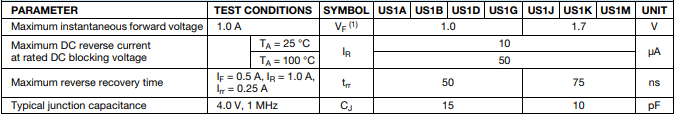

4. ELECTRICAL CHARACTERISTICS
