1. FEATURES
1. Trench MOS Schottky technology
2. Low forward voltage drop, low power losses
3. High efficiency operation
4. Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
5. TJ 200 °C max. in solar bypass mode application

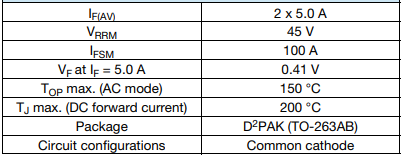

2. Main features
3. MECHANICAL DATA
1. Molding compound meets UL 94 V-0 flammability rating
2. Base P/N-E3 - RoHS-compliant, commercial grade
3. Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
4. E3 suffix meets JESD 201 class 1A whisker test
5. Polarity: as marked
6. Mounting Torque: 10 in-lbs maximum
4. APPLICATIONS
For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias.

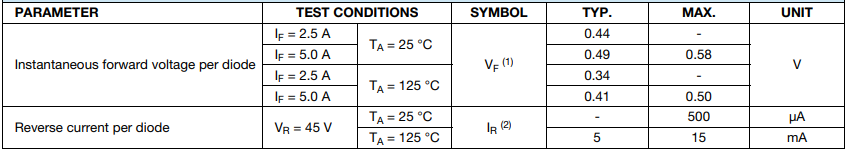

5. Electrical characteristics
6. Package overview
