1. Describe
The device is a dual-channel high-side driver Manufactured using ST's proprietary VIPower® technology and installed in PowerSSO-12 pack. The device is designed to drive 12 V Automotive ground load via 3 V and 5 V CMOS compatible interface that provides Protection and diagnosis. The device integrates advanced protection Load current limit, overload and other functions Through power limiting and active management Overheat shutdown. Current sensing provides high accuracy Proportional load current sensing in addition to Detection of overload and short circuit to ground, Short to VCC and off-state open load. Sense Enable Pin Allows Off-State Diagnostics Disabled in module low power mode and shared between the external sense resistor similar equipment.
2. Feature
1. Compliant with automotive standards
2. Very low voltage operation for deep cold cranking applications
3. General
− Dual-channel smart high-side driver with CurrentSense analog feedback
− Very low standby current
− Compatible with 3 V and 5 V CMOS output
4. CurrentSense diagnostics
− Multiplexed analog feedback: load High precision proportional current current mirror
− Overload and short circuit to ground (power supply limit) instruction
− Thermal shutdown indication
− Off-state open load detection
− Output to VCC short circuit detection
− Sensing enable/disable
5. Protect
− Undervoltage shutdown
− Overvoltage clamp
− Load current limit
− Self-limiting of fast thermal transients
− loss of ground and loss of VCC
− Reverse battery with external components
− Electrostatic discharge protection
3. Application
1. All types of automotive resistive, inductive and capacitive loads
2. Dedicated to car signaling Lamp (up to R10W or LED rear combination)

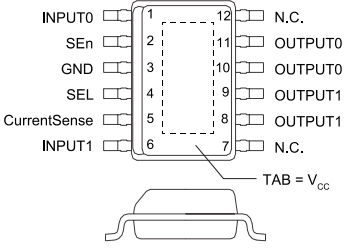

4. Pin configuration
