1. Describe
The device is a full-bridge motor driver Suitable for a wide range of automotive applications. this The device adopts dual monolithic high side driver and two low-side switches. Both switches are designed to use STMicroelectronics' well-known and proven Proprietary VIPower® M0-7 technology that allows Efficient integration on the same mold With smart power MOSFETs signal/protection circuit. three dead Electrically assembled in SO-16N package Isolated lead frame. In addition, its fully symmetrical mechanical design Allows for superior manufacturability at the board level. The input signals INA and INB can be directly Connect the microcontroller to select the motor direction and braking conditions. SEL0 pin is Information that can be used to resolve available CS to microcontroller. CS pin allows Monitor the motor current by providing a The current is proportional to the motor current value. PWM, up to 20 kHz, allows control The speed of the motor under all possible conditions. In all case, a low state on the PWM pin turns off LSA and LSB switches.
2. Feature
1. Vehicle Qualified
2. Output current: 15 A
3. 3 V CMOS compatible input
4. Undervoltage shutdown
5. Overvoltage clamp
6. Thermal shutdown
7. Cross-conduction protection
8. Current and power limits
9. Very low standby power consumption
10. Protection against loss of ground and loss of VCC
11. PWM operation up to 20 kHz
12. CS diagnostic function
– Simulate motor current feedback
– Output short-to-ground detection
– Thermal shutdown indication
– Off state open load detection
– Output short to VCC detection
13. Output short-to-ground protection and Short to VCC
14. Standby mode
15. Half-bridge operation
16. Packaging: ECOPACK

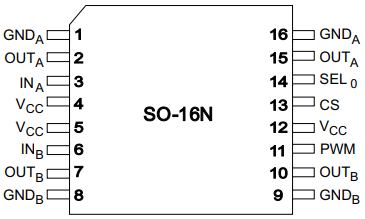

3. Pin configuration
4. Pin Description
