1. Describe
VNQ500PEPTR-E is a monolithic device designed for STMicroelectronics VIPower M0-3 technology, Used to drive any type of load on one side Grounded. Active current limit, combined with latch Thermal shutdown to protect the device from overload. When one channel is overheated The related I/O pin is pulled low. The device will automatically shut down when the following situations occur The ground pin is disconnected.
2. Feature
1. CMOS compatible I/O
2. Chip enable
3. Junction over temperature protection and diagnosis
4. Current limit
5. Short-circuit load protection
6. Undervoltage shutdown
7. Grounding protection
8. Very low standby current
9. Conform to 2002/95/EC European Directive
3. Pin configuration

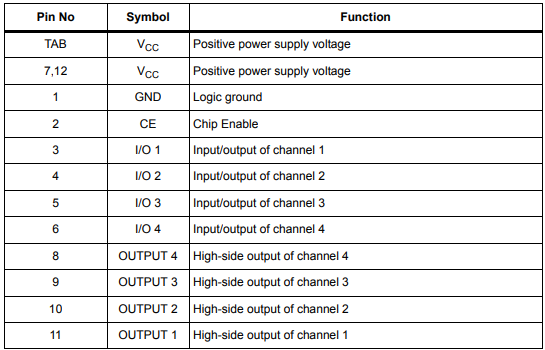

4. Pin description
