1. TYPICAL APPLICATIONS
For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
2. FEATURES
1. Very low profile - typical height of 0.95 mm
2. Ideal for automated placement
3. Trench MOS Schottky technology
4. Low power losses, high efficiency
5. Low forward voltage drop
6. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
7. AEC-Q101 qualified available
- Automotive ordering code; base P/NHM3
8. Material categorization: for definitions of compliance
3. MECHANICAL DATA
1. Case: SlimSMA (DO-221AC)
2. Molding compound meets UL 94 V-0 flammability rating
3. Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
4. Base P/NHM3_X - halogen-free, RoHS-compliant, and AEC-Q101 qualified
5. Terminals: matte tin plated leads, solderable per J-STD-002 and JESD22-B102
6. M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix meets JESD 201 class 2 whisker test
7. Polarity: color band denotes cathode end
4. PRIMARY CHARACTERISTICS

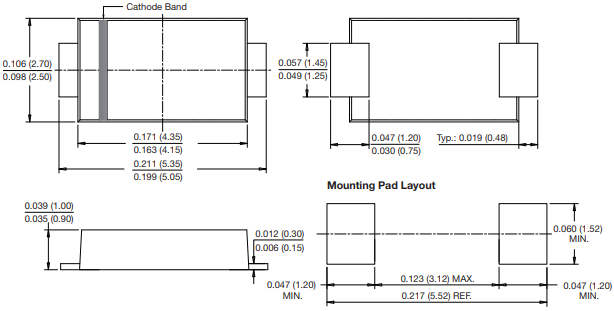

5. PACKAGE OUTLINE DIMENSIONS
