1. Describe
The Z0805C330APMST power cord multilayer ferrite chip bead is an ideal choice for high frequency noise countermeasures on DC power cords. The small size of this ferrite bead makes it suitable for mobile devices that require a small space in size and height. Unique green film and printing technology achieve low RDC, thereby reducing power consumption and longer battery life. Using three different types of materials can further specialize the functions and characteristics of chip beads:
1. Material "A" for broadband noise suppression. low R-XL frequency crossover point and large resistance part work As a damping function, suppress unnecessary resonance And maintain signal integrity.
2. Material "B" used to suppress noise above 20 MHz, with Attenuation increases. Particularly effective for general use Used for video signal lines.
2. Feature
1. Miniature and low-key
2. Reduced power consumption due to low RDC value
3. Flexible circuit design does not require grounding
4. Prevent interference between circuits in mobile systems
5. Impedance value from 10 – 390 Ω
6. Rated current range is 0.8 – 4 A
7. Operating temperature range is -55°C to +85°C
3. Applications
1. PC, tablet, peripherals
2. Differential transmission line on USB and IEEE1394 interface
3. Mobile and portable equipment

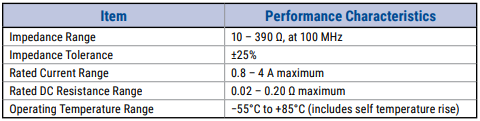

4. Performance Characteristics
5. Dimensions
