1. Feature
The following are the main features of APT60DQ60BG equipment:
1. Super fast recovery time
2. Soft recovery characteristics
3. Low forward voltage
4. Low leakage current
5. Rated avalanche energy
6. Popular TO-247 package
7. RoHS compliant
8. AEC-Q101 qualified
2. Application
The APT60DQ60BG device is designed for the following applications:
1. PFC
2. Continuous conduction mode
3. Freewheeling diode
4. Inverter
5. Hard switching or soft switching high frequency SMPS
6. Clamp diode
7. Single switch and double switch forwarding
8. Bridge circuit
9. Fast output rectifier
10. High output voltage switching power supply

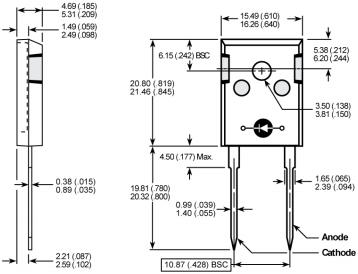

3. Package Outline Drawing
