1. Description
This series is packaged in the compact, low profile PowerDI®123 package. Providing low forward voltage drop, this device is ideal for use in general rectification applications such as:
1. Power Supply Applications
2. DC-DC Converters
3. AC-DC Adaptors/Chargers
4. Freewheeling Diodes
5. Inverters
2. Features
1. Glass Passivated Die Construction
2. Ideally Suited for Automated Assembly
3. Low Forward Voltage Drop
4. Low Profile Design, Package Height Less than 1.1mm
5. Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
6. Halogen and Antimony Free. "Green" Device (Note 3)
7. Patented Interlocking Clip Design for High Surge Capacity, US Patent #7,095,113
3. Mechanical Data
1. Case Material: Molded Plastic, "Green" Molding Compound.
2. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Matte Tin Finish Annealed over Copper Leadframe (Lead-Free Plating).
5. Solderable per MIL-STD-202, Method 208
6. Terminal Connections: Cathode Band
7. Weight: 0.01 grams (Approximate)

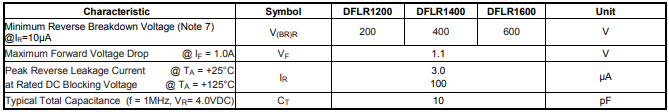

4. Electrical Characteristic

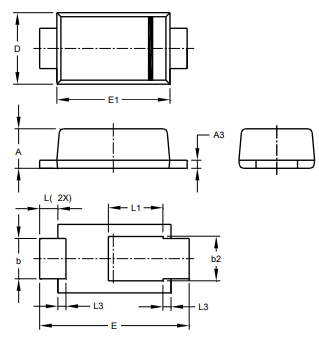

5. Package overview
