1. Describe
This series uses a compact, low-profile PowerDI®123 package. The device provides low forward voltage drop, which is very suitable for general rectification applications.
2. Features
1. Glass Passivated Die Construction
2. Ideally Suited for Automated Assembly
3. Low Forward Voltage Drop
4. Low Profile Design, Package Height Less than 1.1mm
5. Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
6. Halogen and Antimony Free. "Green" Device (Note 3)
7. Patented Interlocking Clip Design for High Surge Capacity, US Patent #7,095,113
3. Mechanical Data
1. Case Material: Molded Plastic, "Green" Molding Compound.
2. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Matte Tin Finish Annealed over Copper Leadframe (Lead-Free Plating).
5. Solderable per MIL-STD-202, Method 208
6. Terminal Connections: Cathode Band
7. Weight: 0.01 grams (Approximate)
4. Application
1. Power application
2. DC-DC converter
3. AC-DC adapter/charger
4. Freewheeling diode
5. Inverter

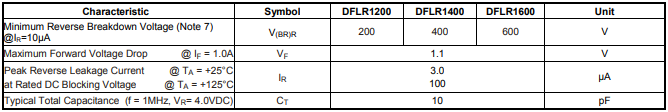

5. Electrical Characteristic
6. Package overview
