1. Description
The EFM8BB10F8G-A-SOIC16, part of the Busy Bee family of MCUs, is a multipurpose line of 8-bit microcontrollers with a comprehensive feature set in small packages. These devices offer high-value by integrating advanced analog and communication peripherals into small packages, making them ideal for space-constrained applications. With an efficient 8051 core, enhanced pulse-width modulation, and precision analog, the EFM8BB10F8G-A-SOIC16 family is also optimal for embedded applications.
EFM8BB10F8G-A-SOIC16 applications include the following:
1. Motor control
2. Consumer electronics
3. Sensor controllers
4. Medical equipment
5. Lighting systems
6. I/O port expander
2. KEY FEATURES
1. Pipelined 8-bit C8051 core with 25 MHz maximum operating frequency
2. Up to 18 multifunction, 5 V tolerant I/O pins
3. One 12-bit Analog to Digital converter (ADC)
4. Two low-current analog comparators
5. Integrated temperature sensor
6. 3-channel enhanced PWM / PCA
7. Four 16-bit timers
8. UART, SPI and SMBus/I2C
9. Priority crossbar for flexible pin mapping

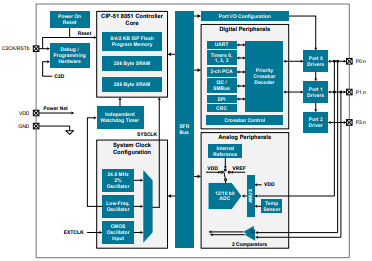

3. Block Diagram

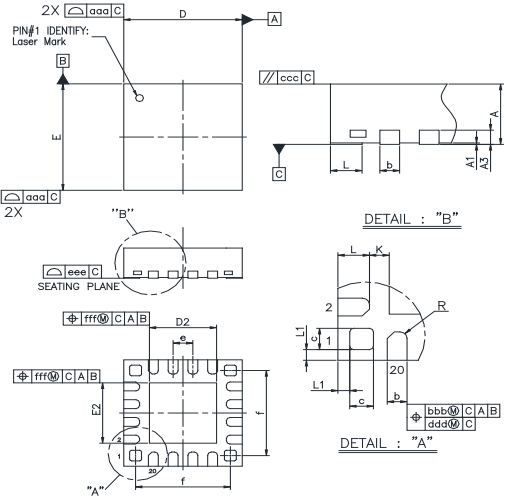

4. Package Dimensions
