1. Description
SUPERFET III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provides superior switching performance, and withstand extreme dv/dt rate. Consequently, SUPERFET III MOSFET Easy drive series helps manage EMI issues and allows for easier design implementation.
2. Features
1. 700 V @ TJ= 150°C
2. Typ. RDS(on)= 210 m
3. Ultra Low Gate Charge (Typ. Qg= 24 nC)
4. Low Effective Output Capacitance (Typ. Coss(eff.)= 248 pF)
5. 100% Avalanche Tested
6. These Devices are Pb−Free and are RoHS Compliant
3. Applications
1. Computing / Display Power Supplies
2. Telecom / Server Power Supplies
3. Industrial Power Supplies
4. Lighting / Charger / Adapter

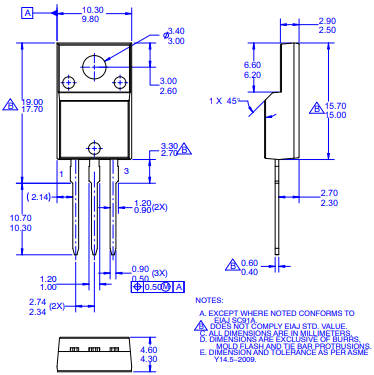

4. Package dimensions
