1. Description

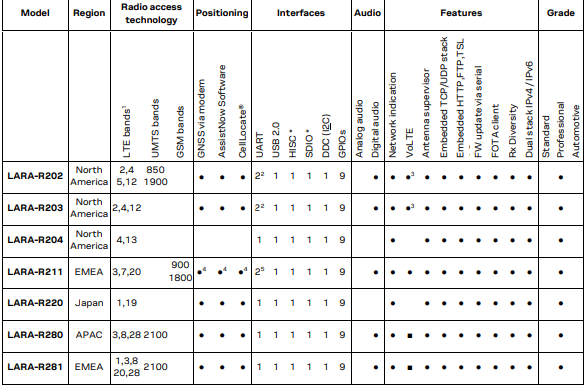

The LARA-R204-02B series contains LTE Cat 1 / 3G / 2G multi-mode modules in a very small LARA LGA Dimensions (26.0 x 24.0 mm, 100 pins), easy to integrate into a compact design. LARA-R2 series modules support multi-band LTE-FDD Cat 1 wireless access technology with seven functions Regional variants. Each variant is designed for specific regional market needs to allow Develop cost-effective but feature-rich products. Available in variants with 2G or 3G backup versions Connectivity when LTE coverage is not yet available. This allows seamless operation during operation Technology transformation. The LARA module is compatible with u-blox SARA, LISA and TOBY cellular module series in terms of dimensions: This helps to easily migrate from u-blox GSM/GPRS, CDMA, UMTS/HSPA and other LTE modules, Maximize customer investment, simplify logistics, and shorten time to market. Due to the long time, these modules are ideal for applications that transition from 2G and 3G to LTE Long-term availability and scalability of LTE networks. These modules have a range of interface options and integrated IP stacks designed to support Various data-centric applications. The unique combination of performance and flexibility enables These modules are very suitable for medium-speed M2M applications, such as smart energy gateways, Remote access to cameras, digital signage, telemedicine and telematics. LARA-R2 series modules include product versions that support Voice over LTE (VoLTE) and VoIP 3G or 2G (CSFB), used for applications that require voice, such as security and surveillance systems. Thanks to u-blox's CellLocate® technology, LARA-R2 series modules provide cost-effective positioning Estimate based on information from surrounding cellular base stations. Positioning solution CellLocate® and u-blox GNSS modules provide redundancy and accuracy, which is Numerous applications. The temperature range of –40°C to +85°C ensures operation in harsh environments and extremely high temperatures Compact design. The LARA-R2 module is manufactured in an ISO/TS 16949 certified site with the highest output Standard and highest quality and reliability. During the testing process, each module is fully tested and inspected produce. The module has passed ISO 16750 certification-suitable for systems installed in vehicles. The USB driver and RIL software for Android are free.
2. Product features
3. Pin definition

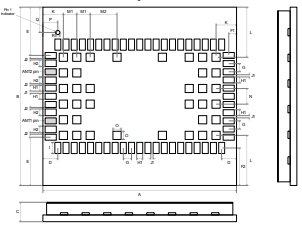

4. Mechanical specifications
