1. Description
LEA-M8S module provides concurrent GNSS positioning function and high performance u-blox M8 positioning technology adopts LEA size recognized in the industry. With its dual-frequency RF front end, the u-blox M8 concurrent GNSS engine can execute intelligently Use up to three visible satellites in the GNSS system (GPS/Galileo system) (Use GLONASS or Beidou) to achieve more reliable positioning. LEA-M8S provides excellent performance High performance, low system power consumption, optimized for cost-sensitive applications. It also supports Mail integrity protection, geofencing and fraud detection. The LEA-M8S module has a complete radio frequency architecture and interference suppression function to ensure The best performance can be achieved even in a hostile GNSS environment. It has extremely low power consumption GLONASS feature. It is easy to transplant the sixth-generation module adopting LEA specifications from LEA6x GPS and LEA-6N GPS/GLONASS modules. The LEA-M8S module combines a high level of robustness and integration capabilities as well as flexibility Connection options. DDC (compatible with I2C) interface can provide connection and achieve synergy Used with most u-blox cellular modules. In order to optimize the radio frequency, LEA-M8S is equipped with a front-end SAW filter Enhance anti-interference ability.

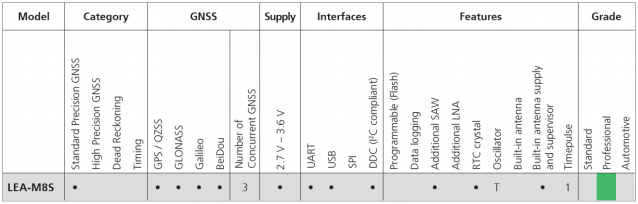

2. Product features

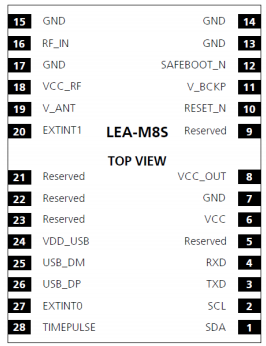

3. Pin assignment

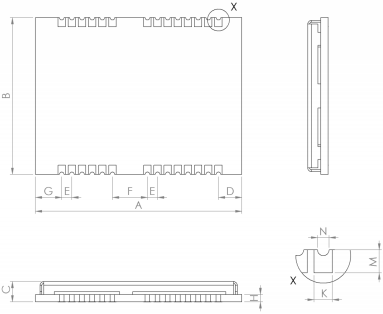

4. Mechanical specifications
