1. Description
The ZED-F9T timing module provides nanosecond timing accuracy for the most demanding infrastructure applications. ZED-F9T is designed to meet the most stringent timing synchronization requirements on 5G mobile networks World size. By greatly reducing the time error The main source of cellular network synchronization ZED-F9T will help operators maximize performance Their network, thereby optimizing their return on investment In 5G communications. The multi-band function of the module can reduce timing errors No need for less than 5 ns under clear sky External GNSS correction service. Further improve accuracy Locally, ZED-F9T has a differential timing mode, Exchange correction data with other neighbors The GNSS timing receiver passes through the communication network. Multi-band access to all four satellite constellations Enhance the receiver’s ability to provide more content Reliable performance. In order to support GNSS signals to the greatest extent, The ZED-F9T module has design flexibility, provides two pin-compatible frequency band versions, supports L1/L2/E5b and L1/L5/E5a configuration. ZED-F9T contains advanced security features, such as security Boot, security interface and T-RAIM to provide the highest Level timing integrity. The module has a single RF input for all GNSS frequency bands, and Dual SAW filters have excellent signal selectivity and out-of-band attenuation.
2. Pin assignment

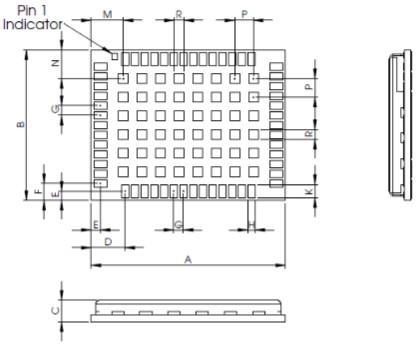

3. Mechanical specification
