1. Description
The LEON-G100-06S series module is a cost-effective solution that can provide complete quad-band GSM/GPRS data and voice Features in a compact LCC (lead-free chip carrier) form factor. Has low power consumption and GSM/GPRS level 10 data transmission with voice function, LEON-G1 series module combines baseband, radio frequency The transceiver, power management unit and power amplifier in a single, easy-to-integrate solution. LEON-G1 series modules are fully qualified and certified solutions that can reduce costs and shorten installation time. market. These modules are very suitable for M2M and automotive applications, such as: automatic meters Reading (AMR), Remote Monitoring Automation and Control (RMAC), Surveillance and Security, eCall, Road Pricing, asset tracking, fleet management, anti-theft systems and point of sale (PoS) terminals. LEON-G1 series modules support full access to u-blox GNSS positioning chips and modules via GSM modem. GSM and GNSS can be controlled through a single serial port on any host processor. LEON-G1 compact The form factor and SMT pads allow fully automated assembly through standard pick and place and reflow soldering, which is cost-effective.

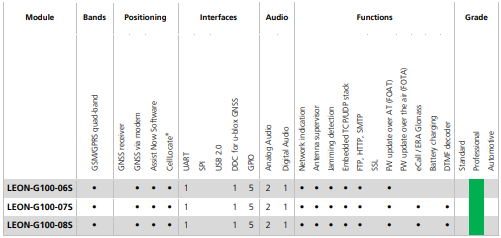

2. Product features
3. Pin assignment

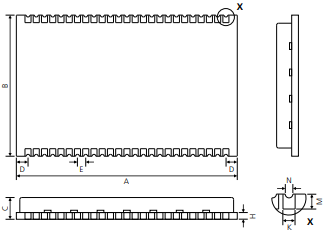

4. Mechanical specifications
