Description
The members of the MK22FN1M0AVLQ12 series have been optimized to save costs.
Applications requiring low power consumption, USB connection, processing The efficiency of floating point units. It shares comprehensive Implementation and scalability of Kinetis series. this product provide:
1. Up to 1 MB of flash memory and up to 128 KB of SRAM
2. Small packaging, high storage density
3. Reduce power consumption to 279μA/ MHz. still The power consumption is as low as 5.1μA while maintaining the full state And 5μs wake up. Lowest static mode as low as 268nA
4. USB LS / FS OTG 2.0 with embedded 3.3 V, 120 mA LDO Regulator
1. Performance
- Up to 120 MHz ARM Cortex-M4-based core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
2. Memories and memory interfaces
- Up to 1 MB program flash memory and 128 KB RAM
- 4 KB FlexRAM and 128 KB FlexNVM on FlexMemory devices
- FlexBus external bus interface
3. System peripherals
- Multiple low-power modes; low leakage wakeup unit
- Memory protection unit with multi-master protection
- 16-channel DMA controller
- External watchdog monitor and software watchdog
4. Security and integrity modules
- Hardware CRC module
- 128-bit unique identification (ID) number per chip
5. Analog modules
- Two 16-bit SAR ADCs
- Two 12-bit DACs
- Three analog comparators (CMP)
- Voltage reference
6. Communication interfaces
- USB full-/low-speed On-the-Go controller
- USB Device Charger detect
- Controller Area Network (CAN) module
- Three SPI modules
- Three I2C modules
- Six UART modules
- Secure Digital host controller (SDHC)
- I2S module
7. Timers
- Two 8-channel Flex-Timers (PWM/Motor Control)
- Two 2-channel Flex-Timers (PWM/Quad Decoder)
- Periodic interrupt timers and 16-bit low-power timer
- Carrier modulator transmitter
- Real-time clock
- Programmable delay block
8. Clocks
- 3 to 32 MHz and 32 kHz crystal oscillator
- PLL, FLL, and multiple internal oscillators
9. Operating Characteristics
- Voltage range: 1.71 to 3.6 V
- Flash write voltage range: 1.71 to 3.6 V
- Temperature range (ambient): –40 to 105°C

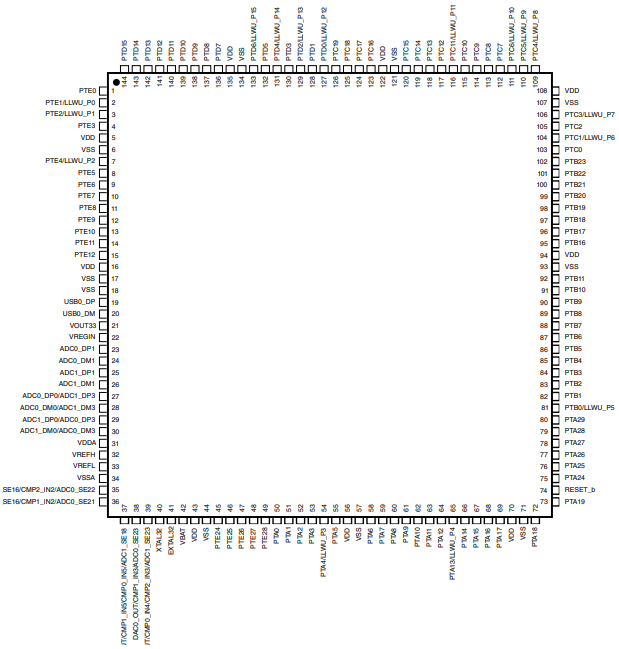

K22 144 LQFP Pinout Diagram
AC electrical characteristics

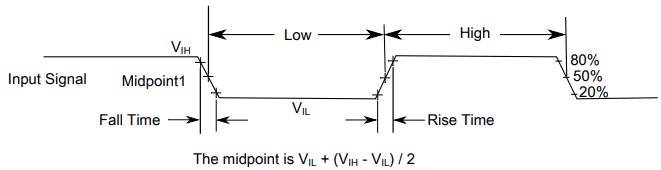

The measurement range of propagation delay is 50% to 50% point and the rise and fall times are measured at 20% and 80% points respectively, as shown in the figure below.
Input signal measurement reference
All digital I/O switching characteristics assume:
1. output pins
- have CL=30pF loads,
- are configured for fast slew rate (PORTx_PCRn[SRE]=0), and
- are configured for high drive strength (PORTx_PCRn[DSE]=1)
2. input pins
- have their passive filter disabled (PORTx_PCRn[PFE]=0)
