1. Description
NINA-W132 is a small independent wireless module integrated with a powerful microcontroller (MCU) and a radio for wireless communication. The NINA‑W13 module comes with pre-refreshed application software and supports 802.11b/g/n in the 2.4 GHz ISM band. The host system can set up and control the module through the AT command interface. This greatly reduces the time and complexity of adding Wi-Fi connection to the final product. The NINA-W13 module provides top-level security through secure boot, thus ensuring only the module Start using the original u-blox software. Expected applications include telematics, low-power sensors, connected factories, connected buildings (equipment and surveillance), point of sale and sanitation equipment. Since developers can choose to use an external antenna (NINA-W131), device design is simplified Or use the built-in antenna (NINA-W132). In addition, the NINA-W13 module is pin-compatible with other NINA modules, thus providing the greatest flexibility for the development of similar products. Provide equipment of different radio technologies. The module meets the following requirements. ISO 16750 is suitable for professional operation and supports an extended temperature range of –40°C to +85°C.

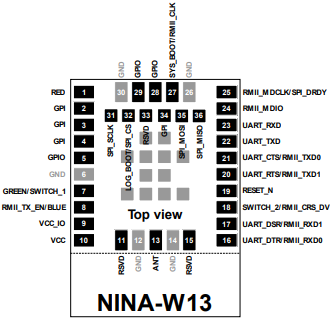

2. Pin assignment
3. Applications
1. Internet of Things (IoT)
2. Wi-Fi networks
3. Telematics
4. Point-of-sales
5. Medical and industrial networking
6. Access to laptops, mobile phones, and similar consumer devices
7. Home/building automation
8. Ethernet/Wireless Gateway

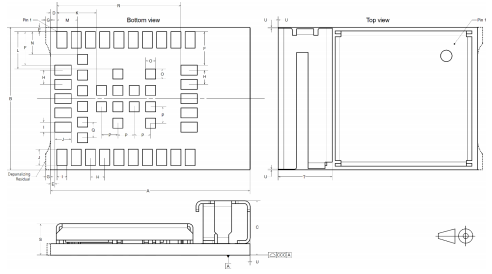

4. NINA-W132 mechanical specification
