1. Description
The ODIN-W2 series is a highly integrated multi-radio module developed by u-blox for integration in demanding, Reliable equipment, such as those required for industrial and medical applications. The module revolves around a multiradio chip, including dual-band Wi-Fi and dual-mode Bluetooth (classic Bluetooth v2.1 + EDR and Bluetooth Low Energy v4.0). Wi-Fi support conforms to IEEE 802.11a/b/g/n, and supports dual frequency 2.4 GHz and 5 GHz operation and 2.4 GHz 2×2 MIMO. There are different versions of high-performance ODIN-W2 series modules (please refer to product features). This The size of the module is small, and the interface layout is the same as the previous Bluetooth and Wi-Fi modules From u-blox, with 15x22mm ODIN size. The module has embedded drivers, stacks and applications for wireless data transmission and AT commands Configuration
2. Applications
1. Internet of Things (IoT)
2. Wi-Fi and Bluetooth networks
3. Medical and industrial networking
4. Access to laptops, mobile phones, and similar consumer devices
5. Home/building automation
6. Ethernet/Wireless Gateway

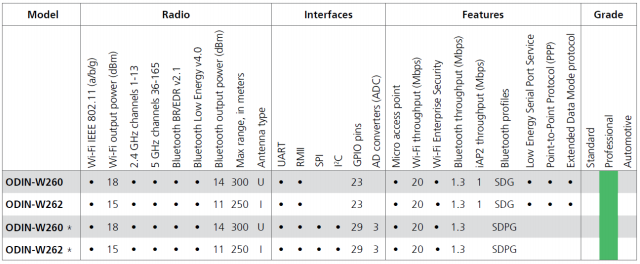

3. Product features

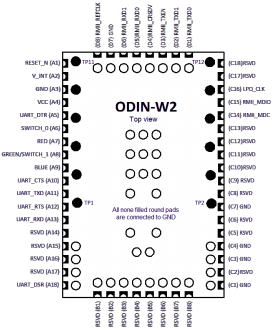

4. Pin assignment

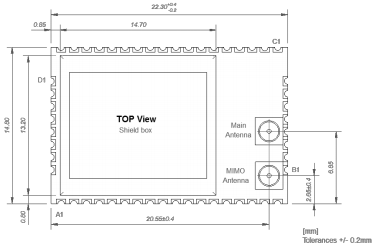

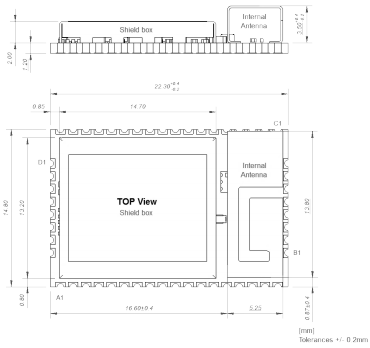

5. Dimensions
