SQ1464EEH-T1_GE3

Technical Details

• Series:Automotive, AEC-Q101, TrenchFET®
• Packaging:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60V
• Current - Continuous Drain (Id) @ 25°C:440mA (Tc)
• Drive Voltage (Max Rds On, Min Rds On):1.5V
• Rds On (Max) @ Id, Vgs:1.41 Ohm @ 2A, 1.5V
• Vgs(th) (Max) @ Id:1V @ 250µA
• Power - Max:--

• Gate Charge (Qg) (Max) @ Vgs:4.1nC @ 4.5V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:140pF @ 25V
• FET Feature:--
• Power Dissipation (Max):430mW (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

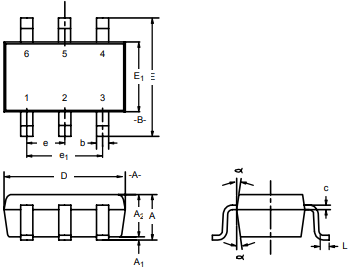

• Supplier Device Package:SC-70-6
• Package / Case:6-TSSOP, SC-88, SOT-363
• Base Part Number:SQ1464
