STM32F091RCT6TR

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

The STM32F091RCT6TR microcontrollers incorporate the high-performance ARM® Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. The device offers standard communication interfaces (two I2Cs, two SPIs/one I2S, one HDMI CEC and up to eight USARTs), one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced-control PWM timer. The STM32F091RCT6TR microcontrollers operate in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F091xB/xC microcontrollers include devices in seven different packages ranging from 48 pins to 100 pins with a die form also available upon request. Depending on the device chosen, different sets of peripherals are included. These features make the STM32F091xB/xC microcontrollers suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.

2. Features

    1. Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz

    2. Memories

        – 128 to 256 Kbytes of Flash memory

        – 32 Kbytes of SRAM with HW parity

    3. CRC calculation unit

    4. Reset and power management

        – Digital & I/Os supply: VDD = 2.0 V to 3.6 V

        – Analog supply: VDDA = VDD to 3.6 V

        – Power-on/Power down reset (POR/PDR)

        – Programmable voltage detector (PVD)

        – Low power modes: Sleep, Stop, Standby

        – VBAT supply for RTC and backup registers

    5. Clock management

        – 4 to 32 MHz crystal oscillator

        – 32 kHz oscillator for RTC with calibration

        – Internal 8 MHz RC with x6 PLL option

        – Internal 40 kHz RC oscillator

        – Internal 48 MHz oscillator with automatic trimming based on ext. synchronization

    6. Up to 88 fast I/Os

        – All mappable on external interrupt vectors

        – Up to 69 I/Os with 5V-tolerant capability and 19 with independent supply VDDIO2

    7. 12-channel DMA controller

    8. One 12-bit, 1.0 µs ADC (up to 16 channels)

        – Conversion range: 0 to 3.6 V

        – Separate analog supply: 2.4 V to 3.6 V

    9. One 12-bit D/A converter (with 2 channels)

  10. Two fast low-power analog comparators with programmable input and output

  11. Up to 24 capacitive sensing channels for touchkey, linear and rotary touch sensors

  12. Calendar RTC with alarm and periodic wakeup from Stop/Standby

  13. 12 timers

        – One 16-bit advanced-control timer for 6 channel PWM output

        – One 32-bit and seven 16-bit timers, with up to 4 IC/OC, OCN, usable for IR control decoding or DAC control

        – Independent and system watchdog timers

        – SysTick timer

  14. Communication interfaces

        – Two I2C interfaces supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, one supporting SMBus/PMBus and wakeup

        – Up to eight USARTs supporting master synchronous SPI and modem control, three with ISO7816 interface, LIN, IrDA, auto baud rate detection and wakeup feature

        – Two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames, and with I2S interface multiplexed

        – CAN interface

  15. HDMI CEC wakeup on header reception

  16. Serial wire debug (SWD)

  17. 96-bit unique ID

  18. All packages ECOPACK®2

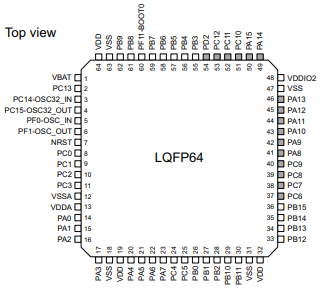

3. Pinouts and pin descriptions

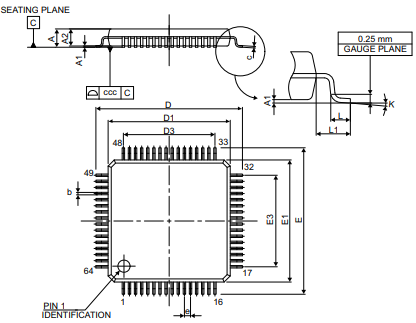

4. package information
